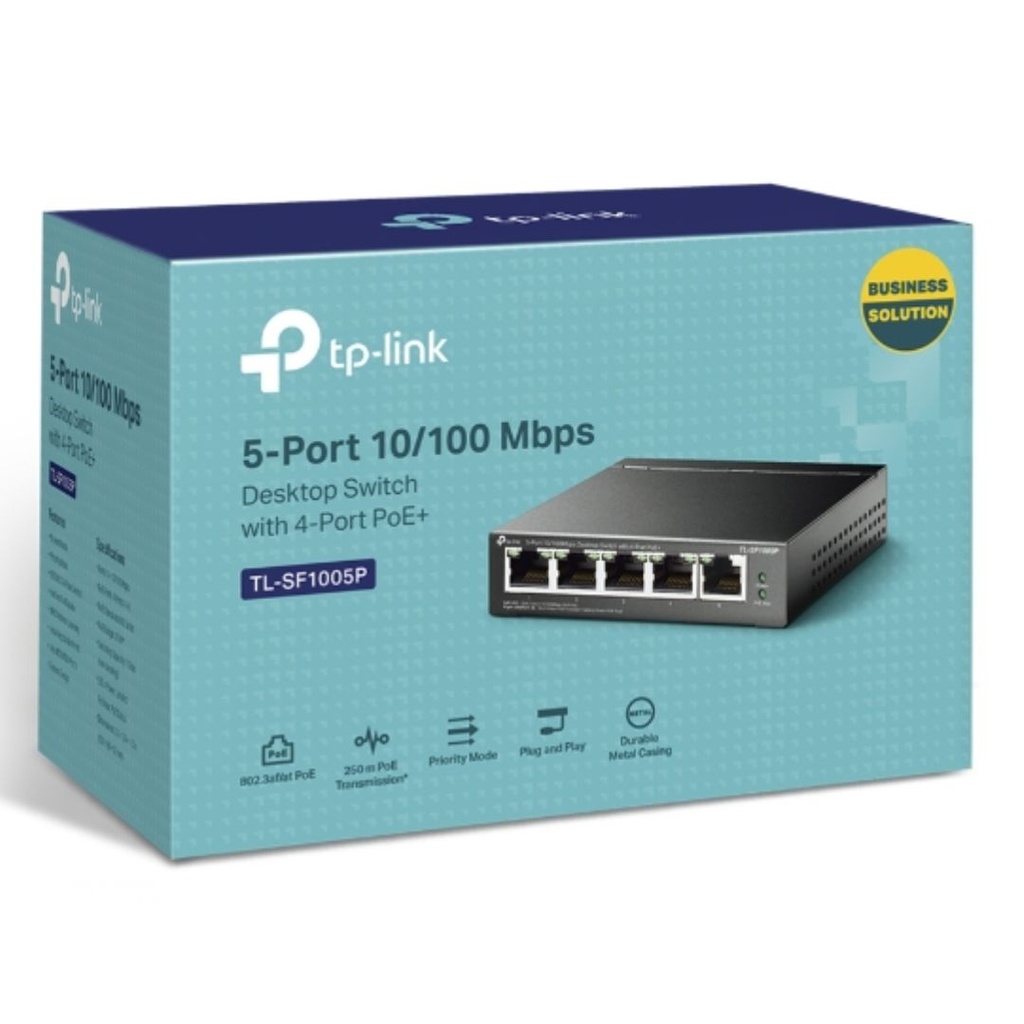

6935364083199 TP-Link TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port PoE 67W IEEE 802.3af compliant 1Gbps Switching

6935364083199 TP-Link TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port PoE 67W IEEE 802.3af compliant 1Gbps Switching

(0 review)

Product Code: 6935364083199

TP-Link TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port PoE 58W IEEE 802.3af compliant 1Gbps Switching
5 10/100Mbps RJ45 ports
With four PoE ports, transfers data and power on one single cable
Working with IEEE 802.3af compliant PDs, expands home and office network
Supports PoE Power up to 15.4W for each PoE port
Supports PoE Power up to 58W for all PoE ports
Requires no configuration and installation
HARDWARE FEATURES
Interface 5 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 58W
Mac Address Table 2K
Switching Capacity 1Gbps
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Transmission Distance Store-And-Forward
Max Power Consumption 63.51W (max. with 58w PD connected)
1.70W (max. no PD connected)
What This Product Does
TL-SF1005P is a 5 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Overload Arrangement

$ 59.00 $ 59.00 (Tax excluded)

  • Brand
  • Manufacturer
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

TP-Link 5-Port 10/100Mbps Desktop PoE Switch with 4-Port, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE)

TP-Link 5-Port 10/100Mbps Desktop PoE Switch with 4-Port. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE)

Management features
Switch typeUnmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Network
Networking standardsIEEE 802.3af, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 100BASE-T
Cable types supportedCat3, Cat4, Cat5, Cat5e, Cat6
Full duplexYes
Half duplexYes
Flow control supportYes
Auto MDI/MDI-XYes
Auto-negotiationYes
MAC address auto-learning supportedYes
MAC address auto-aging supportedYes
Data transmission
Switching capacity1
Forwarding rate0.744
MAC address table2000
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames2000
Design
Rack mountingNo
StackableNo
Product colourBlack
LED indicatorsYes
Performance
Maximum cable length100
FanlessYes
Power
Power sourceDC/PoE
Power supply includedNo
AC input voltage220
AC input frequency50
DC input voltage53.5
Input current1.31
Power consumption (max)74
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity4
Total Power over Ethernet (PoE) budget67
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-40 - 70
Operating relative humidity (H-H)10 - 90
Storage relative humidity (H-H)5 - 90
Heat dissipation252.34
Weight & dimensions
Width99.8
Depth98
Height25
Packaging content
User guideYes
Packaging data
AC adapter includedYes
Package typeBox
Package width131
Package depth196
Package height121
Package weight760
Sustainability
Sustainability complianceYes
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
Logistics data
Harmonized System (HS) code85176990

Specifications

Brand TP-Link
Manufacturer TP-Link
