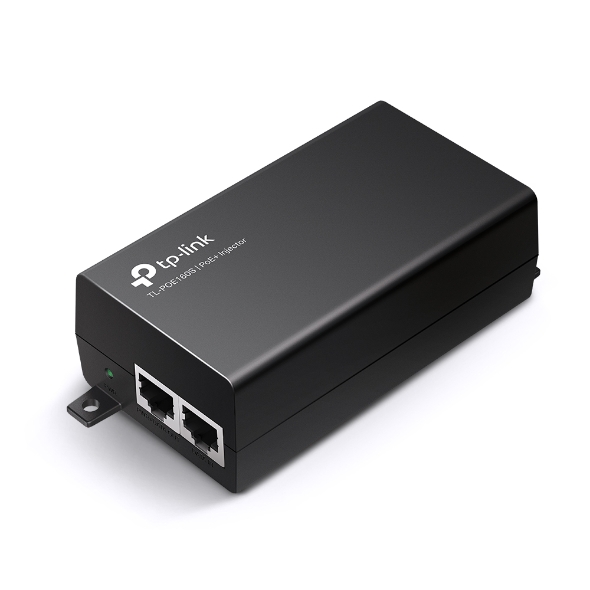

6935364073084 TP-Link TL-POE160S Omada PoE+ Injector, 2 Gigabit Ports, 802.3af/at, Integrated Power Supply, Wall Mountable, Plug Play

6935364073084 TP-Link TL-POE160S Omada PoE+ Injector, 2 Gigabit Ports, 802.3af/at, Integrated Power Supply, Wall Mountable, Plug Play

(0 review)

Product Code: 6935364073084

TP-Link TL-POE160S PoE+ Injector
• 2 Gigabit ports ensure faster transmission
• Complies with IEEE802.3af/at standards, supplies up to 30 W
• Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
• Automatically determines and supplies the exact power to meet the device's need
• Wall-mounting and desktop design accommodates most installation scenarios
• Plug Play installation, requires no configuration
• Integrated power supply
NETWORK
Standards and Protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
GENERAL
Certification FCC, CE, RoHS
Environment Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90%RH non-condensing
Storage Humidity: 5% to 90%RH non-condensing
HARDWARE FEATURES
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
Ports 1 10/100/1000Mbps RJ45 data-in port
1 10/100/1000Mbps RJ45 power+data-out port
1 AC socket
Power Consumption Input: 100-240 V, 50/60 Hz
Output: Auto-determine the necessary power requirements (max. 30 W)
Basic Function Auto-Sensing Algorithm enables providing power with 802.3af/at PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play
LED Indicator ON: Supplying power normally
OFF: No power supply
Dimensions ( W x D x H ) 4.9*2.3*1.4 in (125*59.4*36.8 mm)

$ 49.00 $ 49.00 (Tax excluded)

  • Brand
  • Manufacturer
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

TP-Link PoE+ Injector, Gigabit Ethernet, 10,100,1000 Mbit/s, 10/100/1000, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, Cat3, Cat4, Cat5, Cat5e, Black

TP-Link PoE+ Injector. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000. Product colour: Black, Maximum operating distance: 100 m, LED indicators: Power. Output power: 30 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Certification: FCC, CE, RoHS. Width: 125 mm, Depth: 59.4 mm, Height: 36.8 mm

Network
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000
Cabling technology10/100/1000
Power over Ethernet (PoE)Yes
Networking standardsIEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u
Cable types supportedCat3, Cat4, Cat5, Cat5e
Features
Product colourBlack
Wall mountableYes
Plug and PlayYes
Maximum operating distance100
LED indicatorsPower
Ports & interfaces
Ethernet LAN (RJ-45) ports2
RJ-45 input ports1
RJ-45 output ports1
Power
Output power30
AC adapter input voltage100 - 240
AC adapter frequency50/60
Certificates
CertificationFCC, CE, RoHS
Operational conditions
Operating temperature (T-T)0 - 40
Operating relative humidity (H-H)10 - 90
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90
Weight & dimensions
Width125
Depth59.4
Height36.8
Packaging content
Number of products included1
Wall mounting kitYes
Power cord includedYes
Quick installation guideYes
Packaging contentTL-POE160S, power cord, RJ45 cable, installation guide, wall-mounting kits
Packaging data
Package width170
Package depth230
Package height80
Package weight460
Package typeBox
Logistics data
Harmonized System (HS) code85044095

Specifications

Brand TP-Link
Manufacturer TP-Link
