6935364072940 TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321B-2) TX: 1310nm, RX: 1550nm, Up To 2KM Transmission Distance, LC Simplex

6935364072940 TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321B-2) TX: 1310nm, RX: 1550nm, Up To 2KM Transmission Distance, LC Simplex

(0 review)

Product Code: 6935364072940

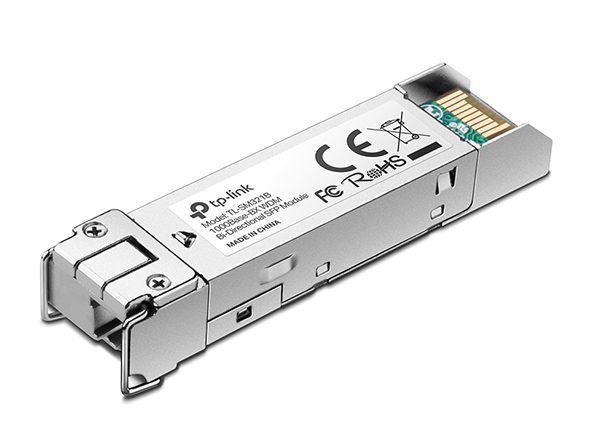

TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321B-2)
• Adopts the latest standard 1000Base-BX
• Up to 2 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
• Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
• Supports Digital Diagnostic Monitoring (DDM)
• Supports Hot Swappable
HARDWARE FEATURES
DDM Yes
SFP-MSA Yes
Hot Swappable Yes
MEDIA CONVERTER MODULE
Standards and Protocols IEEE 802.3z, TCP/IP
Wave Length Tx: 1310 nm
Rx: 1550 nm
Power Supply 3.3V
Safety Emission FCC, CE
Cabel Single-Mode Fiber
Fiber Type 9/125 μm Single-Mode
Max. Cable Length 10 KM
Data Rate 1.25 Gbps
Port Type LC Simplex
Environment Operating Temperature: 0–70 °C (32–158 °F)
Storage Temperature: -40–85 °C ( -40–185 °F)
Operating Humidity: 10–90% RH, Non-Condensing
Storage Humidity: 5–90% RH, Non-Condensing

$ 29.00 $ 29.00 (Tax excluded)

  • Brand
  • Manufacturer
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

TP-Link Gigabit Single-Mode WDM Bi-Directional SFP Module, Fiber optic, 1250 Mbit/s, SFP, LC, 9/125 µm, BX

TP-Link Gigabit Single-Mode WDM Bi-Directional SFP Module. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Metallic. Compliance certificates: RoHS, Certification: FCC, CE. Width: 55.4 mm, Depth: 14.6 mm, Height: 12.9 mm. Quantity per pack: 1 pc(s)

Performance
SFP transceiver typeFiber optic
Maximum data transfer rate1250
Interface typeSFP
Single-mode fiber (SMF) supportedYes
Multi-mode fiber (MMF) supportedNo
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)9/125
SFP transceiver standardBX
Maximum transfer distance1000
Tx wavelength (max)1310
Rx wavelength (max)1550
Networking standardsIEEE 802.3z
Wavelength-division multiplexing (WDM)Yes
Features
Product colourMetallic
Certificates
Compliance certificatesRoHS
CertificationFCC, CE
Operational conditions
Operating temperature (T-T)0 - 70
Storage temperature (T-T)-40 - 80
Operating relative humidity (H-H)10 - 90
Storage relative humidity (H-H)5 - 90
Weight & dimensions
Width55.4
Depth14.6
Height12.9
Packaging content
Quantity per pack1
Packaging data
User guideYes
Package width81.5
Package depth122.5
Package height38.5
Package weight60
Logistics data
Harmonized System (HS) code85369010

Specifications

Brand TP-Link
Manufacturer TP-Link
