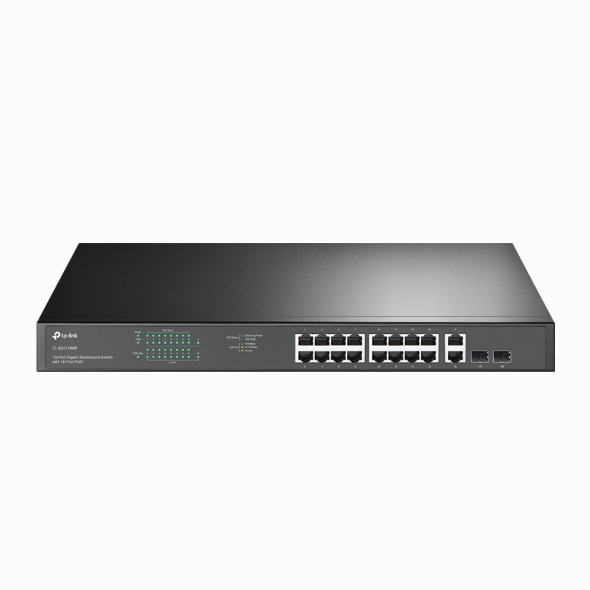

TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting, 1U
TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18. Full duplex. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Traffic classification | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 18 |
| Combo SFP ports quantity | 2 |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Data transmission | |
| Switching capacity | 36 |
| Forwarding rate | 26.78 |
| MAC address table | 8000 |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Number of fans | 2 |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Power consumption (max) | 286.64 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 |
| Total Power over Ethernet (PoE) budget | 250 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 977.44 |
| Weight & dimensions | |
| Width | 440 |
| Depth | 180 |
| Height | 44 |
| Packaging content | |
| Cables included | AC |
| Quick start guide | Yes |
| Packaging data | |
| Package width | 250 |
| Package depth | 528 |
| Package height | 80 |
| Package weight | 3.05 |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
