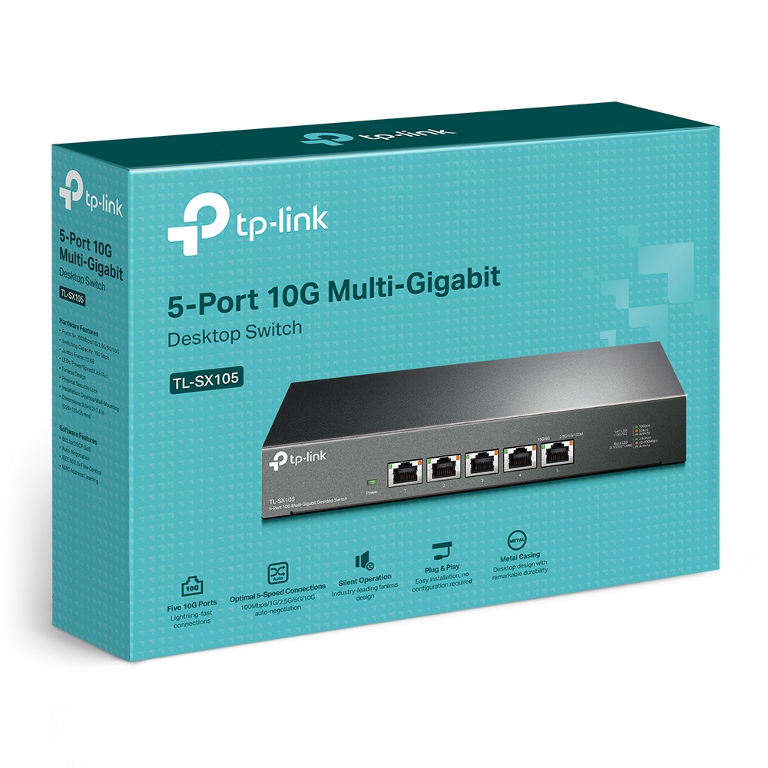

6935364030896 TP-Link TL-SX105 5-Port 10G Desktop Switch, up to 100 Gbps switching capacity, Auto-negotiation, Silent Operation, Metal Casing

6935364030896 TP-Link TL-SX105 5-Port 10G Desktop Switch, up to 100 Gbps switching capacity, Auto-negotiation, Silent Operation, Metal Casing

(0 review)

Product Code: 6935364030896

TP-Link TL-SX105 5-Port 10G Desktop Switch, up to 100 Gbps switching capacity, Auto-negotiation, Silent Operation, Metal Casing
5-Port 10G Desktop Switch
Five 10 Gbps Ports. 5× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices and provide up to 100 Gbps of switching capacity.
Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more.
Ideal for Various Scenarios. Built for lightning-fast connections in LAN parties, home entertainment, small and home offices, and workstations.
Optimal 5-Speed Connections. Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance.
Silent Operation. The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business.
Durable Metal Casing. Durable metal casing, desktop/wall-mounting, and professional heat dissipation design are well suited for different environments.
Plug and Play. Allows for easy deployment without the need for a technician.
HARDWARE FEATURES
Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz
Interface 5× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 12 VDC / 2.0 A)
LED Indicator • System Power: 1
• Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port
Dimensions ( W x D x H ) 8.9×5.2×1.4 in (226×131×35 mm)
Max Power Consumption 21.4 W
PERFORMANCE
Switching Capacity 100 Gbps
Packet Forwarding Rate 74.4 Mpps
MAC Address Table 32 K
Packet Buffer Memory 2 Mb
Jumbo Frame 10 KB
SOFTWARE FEATURES
Advanced Features • 802.3X Flow Control
• 802.1p/DSCP QoS
Transfer Method Store and Forward
OTHERS
Certification CE, FCC ,RoHS
Package Contents • 5-Port 10G Multi-Gigabit Desktop/Rackmount Switch TL-SX105
• Power Cord
• Install

$ 419.00 $ 419.00 (Tax excluded)

  • Brand
  • Manufacturer
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

TP-Link 5-Port 10G Desktop Switch, Unmanaged, 10G Ethernet (100/1000/10000), Wall mountable

TP-Link 5-Port 10G Desktop Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 32000 entries, Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. Wall mountable

Management features
Switch typeUnmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity5
Network
Networking standardsIEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G supportYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Data transmission
Switching capacity100
Forwarding rate74.4
MAC address table32000
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames10000
Packet buffer memory16
Design
Rack mountingNo
Product colourBlack
LED indicatorsYes
Wall mountableYes
Performance
FanlessYes
Power
Power sourceDC
Power supply includedYes
Input current2
Input voltage12
Power consumption (max)21.4
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-40 - 70
Operating relative humidity (H-H)10 - 90
Storage relative humidity (H-H)5 - 90
Weight & dimensions
Width226
Depth131
Height35
Packaging content
Cables includedAC
ManualYes
Packaging data
Package typeBox
Package width240
Package depth315
Package height70
Package weight1.58
Certificates
CertificationCE, FCC ,RoHS
Logistics data
Harmonized System (HS) code85176990

Specifications

Brand TP-Link
Manufacturer TP-Link
