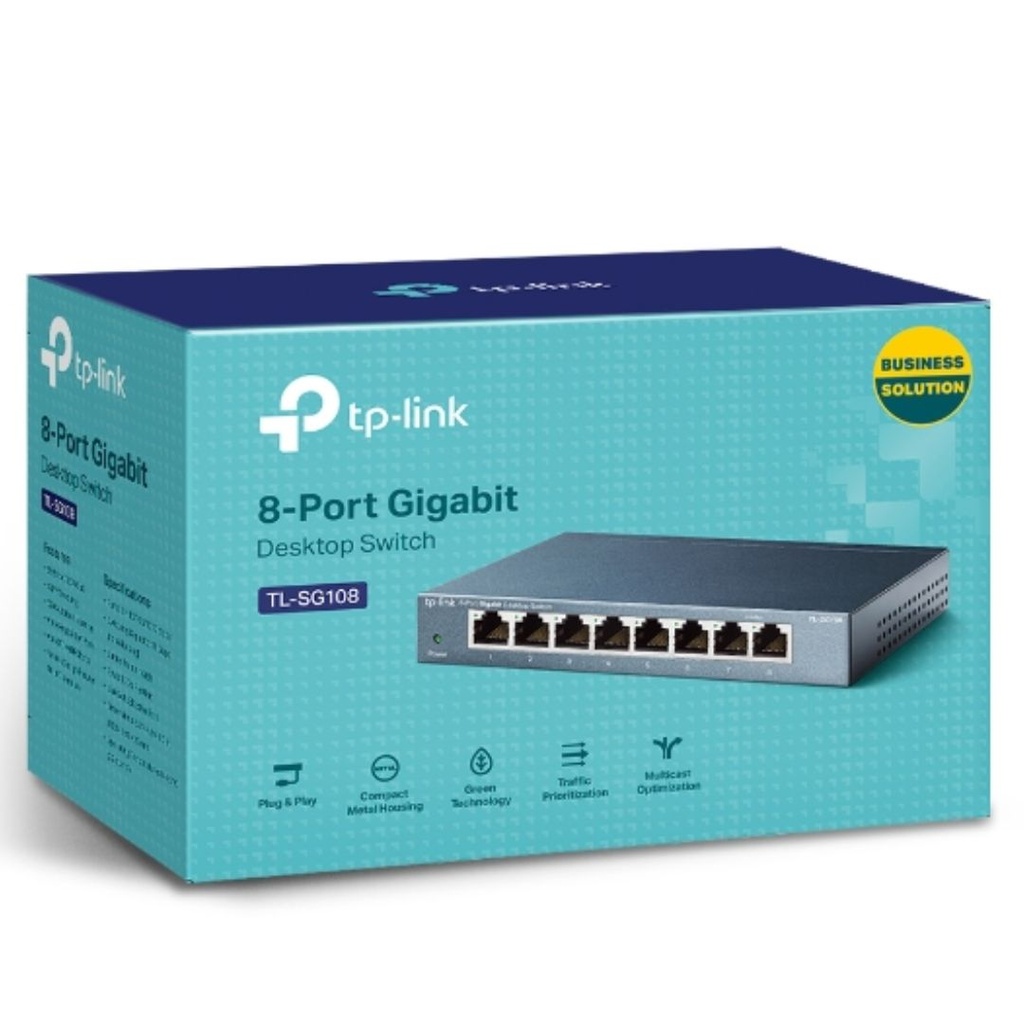

TP-Link 8-Port 10/100/1000Mbps Desktop Network Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex
TP-Link 8-Port 10/100/1000Mbps Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 |
| Auto-negotiation | Yes |
| Data transmission | |
| Supported data transfer rates | 10/100/1000Mbps |
| Switching capacity | 16 |
| Forwarding rate | 11.9 |
| MAC address table | 4000 |
| Store-and-forward | Yes |
| Maximum data transfer rate | 2 |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Packet buffer memory | 1.5 |
| Security | |
| IGMP snooping | Yes |
| Protocols | |
| Switching protocols | CSMA/CD |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| Input current | 0.6 |
| Input voltage | 9 |
| Power consumption (max) | 3.31 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Connectivity technology | Wired |
| Bandwidth | 16 |
| Packet transfer speed | 14880pps/148800pps/1488000pps |
| Wi-Fi | No |
| Power LED | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 158 |
| Depth | 101 |
| Height | 25 |
| Packaging content | |
| User guide | Yes |
| Packaging data | |
| Package width | 130 |
| Package depth | 191 |
| Package height | 92 |
| Package weight | 510 |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
