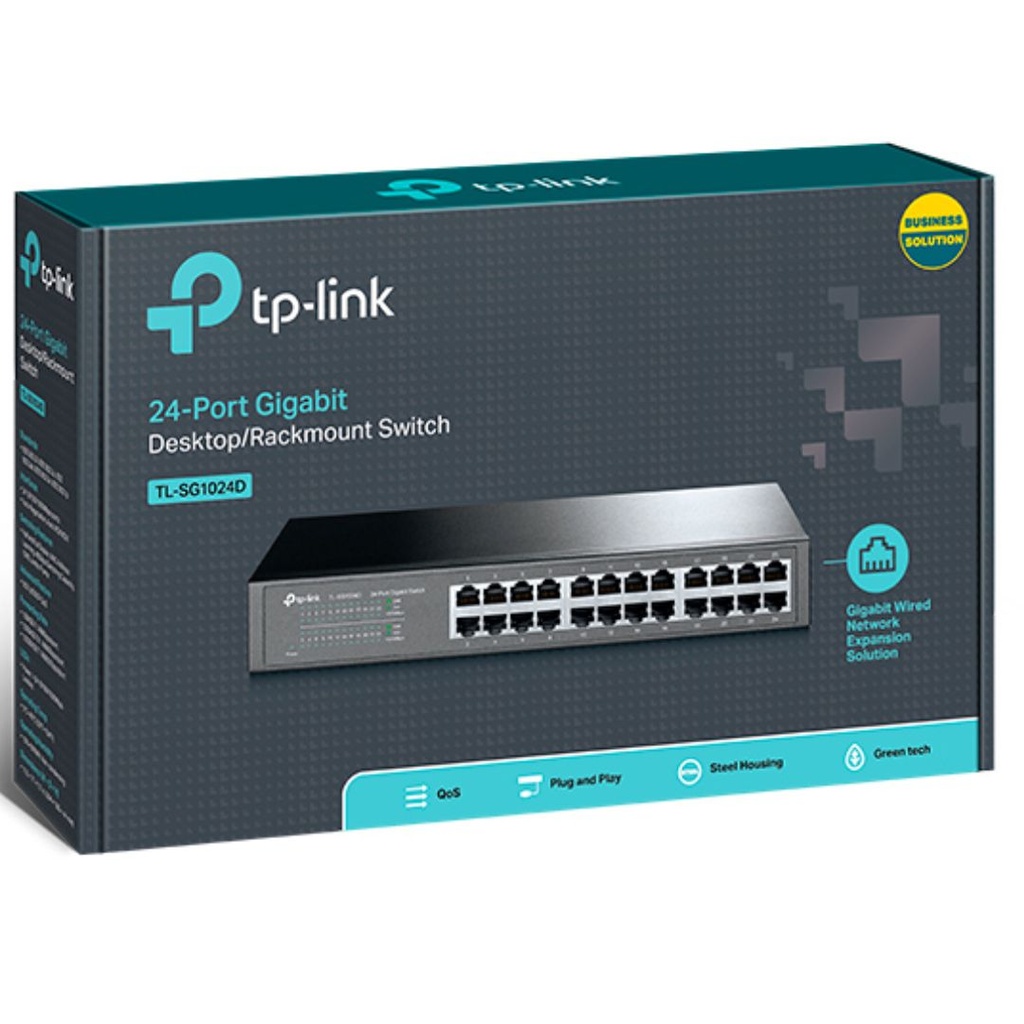

TP-Link 24-Port Gigabit Desktop/Rackmount Network Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting
TP-Link 24-Port Gigabit Desktop/Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Data transmission | |
| Supported data transfer rates | 10/100/100 Mbps |
| Switching capacity | 48 |
| Forwarding rate | 35.7 |
| MAC address table | 8000 |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Protocols | |
| Supported network protocols | CSMA/CD, TCP/IP |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Power consumption (max) | 13.62 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Dimensions (WxDxH) | 294 x 180 x 44 |
| Connectivity technology | Wired |
| Bandwidth | 48 |
| Power requirements | 100 - 240V, 50/60Hz |
| Networking features | Gigabit Ethernet |
| Connectivity LEDs | Y |
| Operational conditions | |
| Operating temperature (T-T) | 32 - 104 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 46.44 |
| Weight & dimensions | |
| Width | 294 |
| Depth | 180 |
| Height | 44 |
| Packaging content | |
| Cables included | AC |
| User guide | Yes |
| Rack mount kit | Yes |
| Packaging data | |
| Package type | Box |
| Package width | 250 |
| Package depth | 400 |
| Package height | 80 |
| Package weight | 1.95 |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
