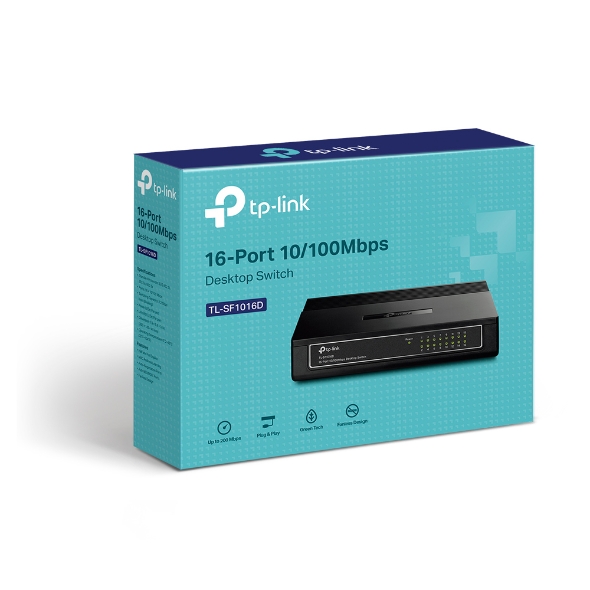

TP-Link 16-Port 10/100Mbps Desktop Switch, Unmanaged, Fast Ethernet (10/100), Full duplex, Rack mounting, Wall mountable
TP-Link 16-Port 10/100Mbps Desktop Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 2000 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3u, IEEE 802.3x. DC input voltage: 9 V. Power connector: DC-in jack. Wall mountable, Rack mounting
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 16 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| Data transmission | |
| Switching capacity | 3.2 |
| MAC address table | 2000 |
| Store-and-forward | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
| Wall mountable | Yes |
| Performance | |
| Fanless | Yes |
| Minimum system requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, MAC OS, NetWare, UNIX, Linux |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 9 |
| Input current | 0.6 |
| Power consumption (max) | 3.23 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 11.01 |
| Weight & dimensions | |
| Width | 200 |
| Depth | 142 |
| Height | 40 |
| Packaging content | |
| User guide | Yes |
| Packaging data | |
| AC adapter included | Yes |
| Package type | Box |
| Package width | 223 |
| Package depth | 285 |
| Package height | 68 |
| Package weight | 590 |
| Sustainability | |
| Sustainability compliance | Yes |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
