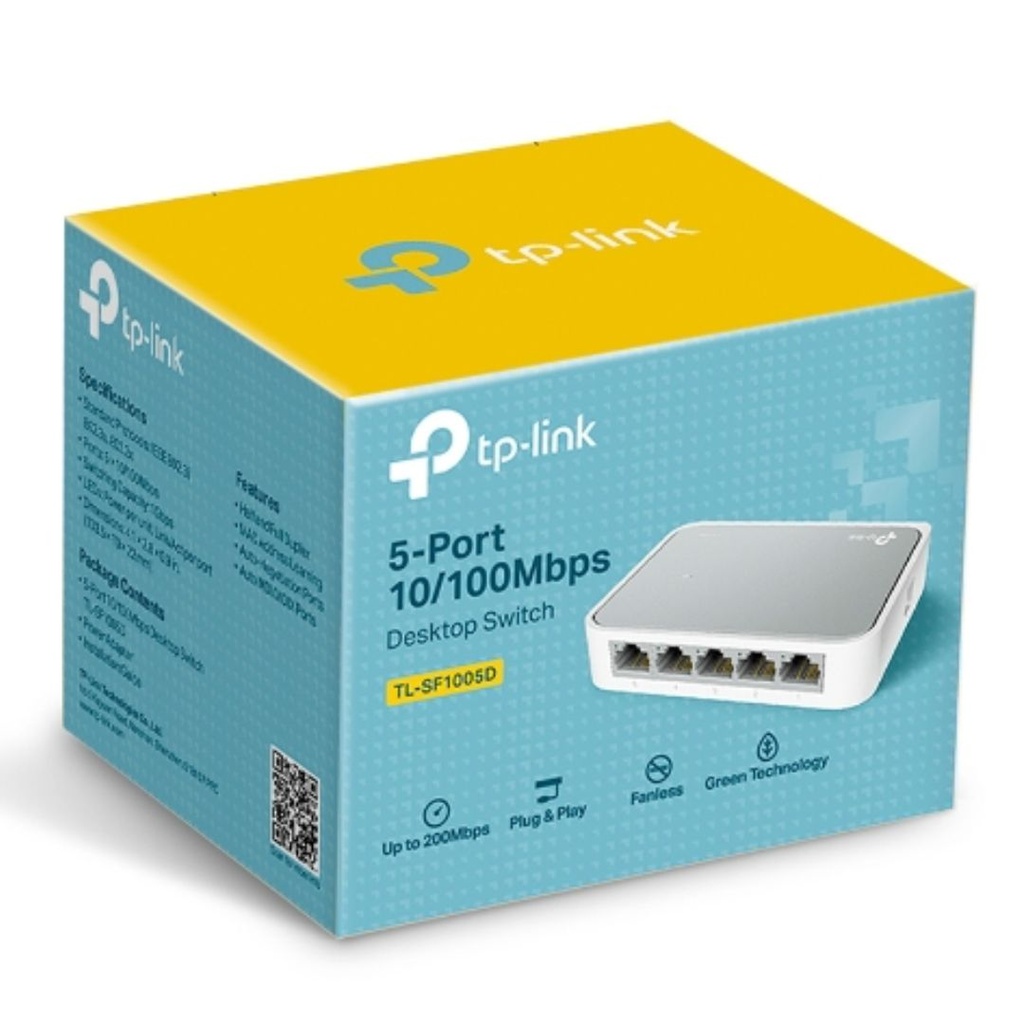

TP-Link TL-SF1005D, Managed, Fast Ethernet (10/100), Full duplex
TP-Link TL-SF1005D. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Power connector: DC-in jack
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10,100 |
| Auto-negotiation | Yes |
| Data transmission | |
| Switching capacity | 1.6 |
| MAC address table | 1000 |
| Store-and-forward | Yes |
| Protocols | |
| Supported network protocols | CSMA/CD, TCP/IP |
| Design | |
| Rack mounting | No |
| Product colour | White |
| LED indicators | Yes |
| Performance | |
| Fanless | Yes |
| Power | |
| Power source | DC |
| Power supply included | No |
| AC input voltage | 220 |
| AC input frequency | 50 |
| DC input voltage | 5 |
| Input current | 0.6 |
| Power consumption (typical) | 1.87 |
| Power consumption (max) | 1.87 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 6.38 |
| Weight & dimensions | |
| Width | 103.5 |
| Depth | 70 |
| Height | 22 |
| Packaging content | |
| Cables included | AC |
| User guide | Yes |
| Packaging data | |
| AC adapter included | Yes |
| Package type | Box |
| Package width | 91 |
| Package depth | 108 |
| Package height | 85 |
| Package weight | 190 |
| Sustainability | |
| Sustainability compliance | Yes |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Certification | FCC, RoHs |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
