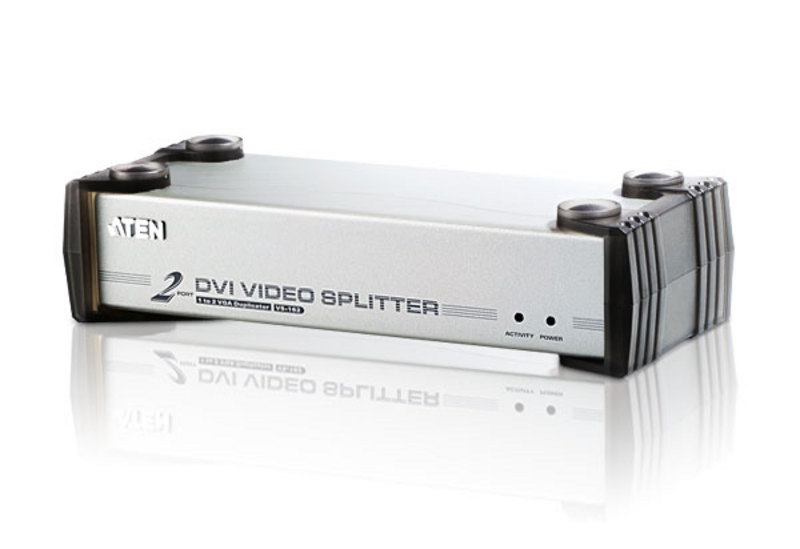

672792111112 Aten Video Splitter 2 Port DVI Video Splitter w/ Audio, 1920x1200@60Hz, Cascadable to 3 Levels (Up to 8 Outputs)

672792111112 Aten Video Splitter 2 Port DVI Video Splitter w/ Audio, 1920x1200@60Hz, Cascadable to 3 Levels (Up to 8 Outputs)

(0 review)

Product Code: 672792111112

VS162 Video Splitter provides DVI video and audio input signals to 2 DVI video and audio outputs after duplication and boosting. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.
Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
Fully compliant with DVI-Digital and DVI-Analog.
Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors.
Speaker enabled for audio enjoyment.
Cascadable to 3 levels - provides up to 8 video signals.
Cascade distance: Source to Device -1.8m, Device to Device-5m,Device to Display-5m.
Installs in minutes.
Maintains highest single link video resolution (up to 1920 x 1200).
DDC, DDC2, DDC2B Compatible (Port 1 only).
HDCP Compliant.
OS Support: Windows 2000, Windows XP, Linux, Mac and Sun

$ 139.00 $ 139.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN VS162, DVI, 2x DVI-I, 1 x DVI-I Female, 1920 x 1200 pixels, Black, Grey, 5 m

ATEN VS162. Video port type: DVI, Video out: 2x DVI-I, Video in: 1 x DVI-I Female. Maximum resolution: 1920 x 1200 pixels, Product colour: Black, Grey, Maximum operating distance: 5 m. AC input voltage: 5.3 V, Power consumption (typical): 2.36 W. Dimensions (WxDxH): 210 x 88 x 55.5 mm, Weight: 620 g

Ports & interfaces
Video port typeDVI
Video in1 x DVI-I Female
Video out2x DVI-I
Video ports quantity3
Audio ports quantity3
Connector(s)2
DC-in jackYes
Features
Product colourBlack, Grey
Maximum resolution1920 x 1200
3DNo
Maximum operating distance5
Remote control includedNo
Rack mountingYes
HDCPYes
Supported graphics resolutions1920 x 1200 (WUXGA)
Power LEDYes
LED indicatorsActivity
Windows operating systems supportedYes
Mac operating systems supportedYes
Mac compatibilityYes
Power
AC input voltage5.3
Power consumption (typical)2.36
USB poweredNo
Weight & dimensions
Dimensions (WxDxH)210 x 88 x 55.5
Weight620
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Technical details
Audio input1
Audio output2
Resolution1920 x 1200
Connector typeDVI-I Female
Number of connectors2
Maximum cable length5
CascadableYes
Maximum video resolution1920 x 1200
Exterior materialPlastic
Logistics data
Harmonized System (HS) code85176990

Specifications

Brand Aten
