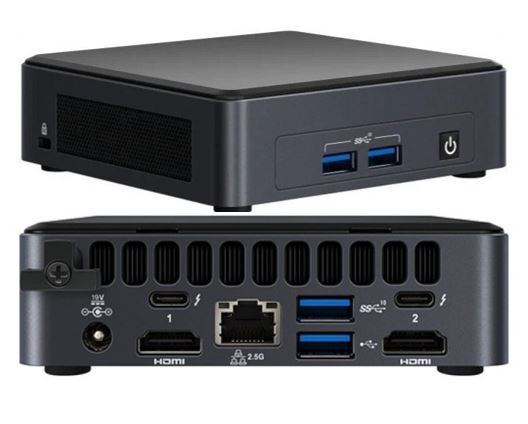

  2. Intel NUC i5-1135G7 Pro 4.20 GHz 2xDDR4 SODIMM M.2 SSD 4xDisplays Iris Xe 2xHDMI 2xDP via USB-C 2xThuderbolt WiFi6 4xUSB GbE LAN no AC Cord

Intel NUC i5-1135G7 Pro 4.20 GHz 2xDDR4 SODIMM M.2 SSD 4xDisplays Iris Xe 2xHDMI 2xDP via USB-C 2xThuderbolt WiFi6 4xUSB GbE LAN no AC Cord

https://www.bosspacific.com.au/web/image/product.template/82231/image_1920?unique=b82b9be

Intel NUC i5-1135G7 4.20 GHz 2xDDR4 SODIMM M.2 SSD 4xDisplays Iris Xe Graphics HDMI USB-C DP mDP 2xTB3 WiFi6 3xUSB GbE LAN BT no AC cord
Essentials
Product Collection Intel® NUC Kit with 11th Generation Intel® Core™ Processors
Code Name Products formerly Tiger Canyon
Status Launched
Launch Date Q1'21
Expected Discontinuance 1H'24
Supported Operating Systems Windows 11 Home* | Windows 11 Pro* | Windows 10 Home | 64-bit* | Windows 10 IoT Enterprise* | Windows 10 Pro | 64-bit* | Red Hat Linux* | Ubuntu 20.04 LTS*
Board Number NUC11TNBi5
Board Form Factor UCFF (4" x 4")
Socket Soldered-down BGA
Internal Drive Form Factor M.2 SSD
# of Internal Drives Supported 2
TDP 28 W
DC Input Voltage Supported 12-20 VDC
Processor Included Intel® Core™ i5-1135G7 Processor (8M Cache | up to 4.20 GHz)
Total Cores 4
Total Threads 8
Lithography 10 nm SuperFin
Max Turbo Frequency 4.20 GHz
Supplemental Information
Embedded Options Available No
Memory Storage
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-3200 1.2V SO-DIMMs
Max # of Memory Channels 2
Max # of DIMMs 2
ECC Memory Supported ‡ No
Processor Graphics
Integrated Graphics ‡ Yes
Graphics Output Dual HDMI 2.0b w/HDMI CEC | Dual DP 1.4a via Type C
# of Displays Supported ‡ 4
Expansion Options
PCI Express Revision Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)
PCI Express Configurations ‡ PCIe x4 Gen 4: M.2 22x80 (key M) PCIe x1 Gen 3: M.2 22x42 (key B) PCIe x1: M.2 22x30 (key E)
M.2 Card Slot (wireless) 22x30 (E)
M.2 Card Slot (storage) 22x80 NVMe (M); 22x42 SATA (B)
I/O Specifications
# of USB Ports 4
USB Configuration Front: 2x USB 3.2 Rear: 2x USB 4 (type C) | 1x USB 3.2 | 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22x42 (pins) | 2x USB 2.0 (headers)
Serial Port via Internal Header Yes
Integrated LAN Intel® Ethernet Controller i225-LM
Integrated Wireless‡ Intel® Wi-Fi 6 AX201
Integrated Bluetooth Yes
Additional Headers Front_panel (PWR |

$ 679.00 679.0 AUD $ 679.00

Not Available For Sale

  • Brand
  • Weight (kg)
  • Product Width (cm)
  • Product Height (cm)
  • Warranty
  • M.2 Length

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Brand Intel
Weight (kg) 1.48
Product Width (cm) 206
Product Height (cm) 102
Warranty 36
M.2 Length 138
