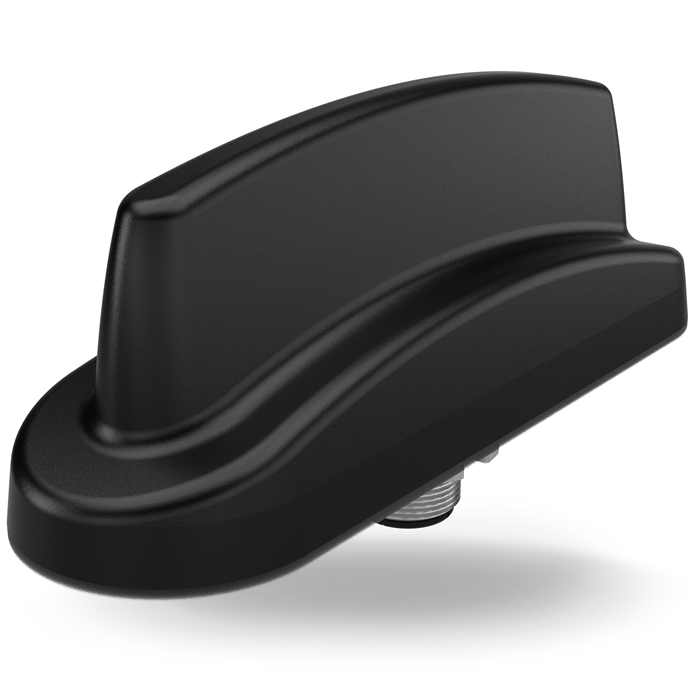

PANORAMA Compact Low Profile MIMO LTE antenna 2G/3G/4G/5G LTE cellular bands, Weatherproof 698-960/1710-3800MHz.
The LP[G]AM-BC3G-26-[XSP] range has been designed to provide MiMo Cellular / LTE antenna function for IOT and M2M applications. The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTE bands in freq. range 698-960/1710-3800MHz.The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTE bands in freq. range 698-960/1710-3800MHz. The LG version includes an active GPS/GNSS/Galileo/Beidou antenna for applications that require position or timing function.The antenna can be fitted on a non-conductive panel if required* and offers easy, quick, secure, and weatherproof installation with the single hole mounting bush and acrylic adhesive sealing pad. Supplied with integrated 1m (3.3’) or 3m (10’) cable and SMA plug connectors, the antenna will offer plug and play connectivity with many different terminals.
Pattern Omnidirectional
Max Input Power(W) 20
Frequency Range | Gain 698 – 960MHz | ; 1710 – 2170MHz | 4.5dBi; 2500 – 3800MHz | 5dBi
Cellular LTE Elements 2 x 2 MIMO
WIFI Elements No
UHF Elements No
Cable Length – LTE min: 1 (m) | 3.28 (ft); max: 3 (m) | 9.84 (ft)
Cable length – GPS min: 1 (m) | 3.28 (ft); max: 3 (m) | 9.84 (ft)
Cable Type (LTE) RG174
Cable Type (GPS) RG174
Connector (GPS) SMA (m)
Connector (LTE) SMA (m)
Mounting Type Fixed Mast; Panel; Wall
Mounting Methods Mast; Panel; Wall
IP Rating IP66
Technology GPS; 4G/5G; 5G; 2G/3G; 2G/3G/4G; GNSS
$ 89.00
89.0
AUD
$ 89.00
Not Available For Sale
-
