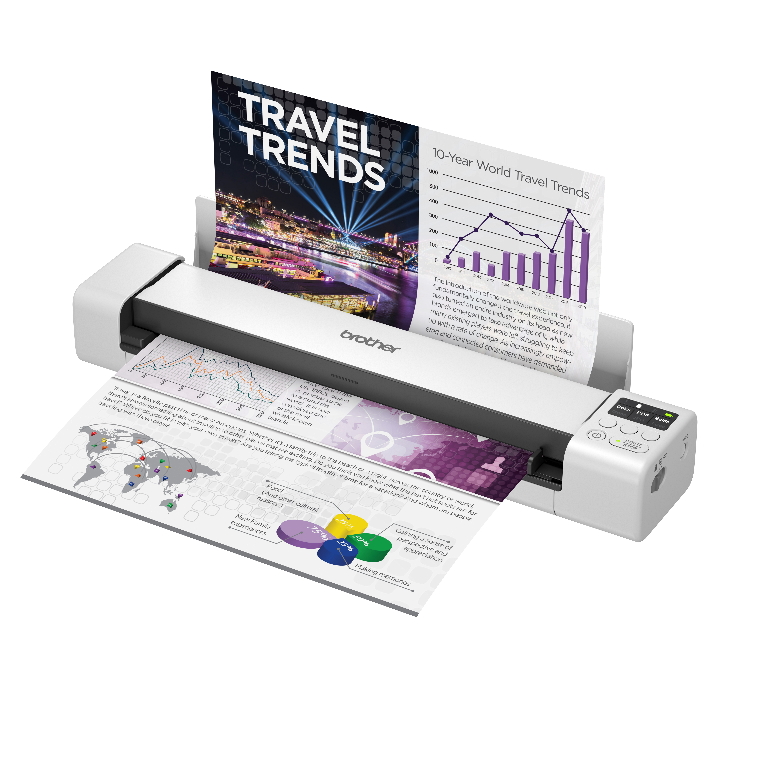

Brother DS-940DW, 215.9 x 1828.8 mm, 600 x 600 DPI, 1200 x 1200 DPI, 48 bit, 24 bit, 15 ppm
Brother DS-940DW. Maximum scan size: 215.9 x 1828.8 mm, Optical scanning resolution: 600 x 600 DPI, Enhanced scan resolution: 1200 x 1200 DPI. Scanner type: Sheet-fed scanner, Product colour: Black, White. Scan to: E-mail, File, Image, Memory card, OCR, Scan drivers: ICA, SANE, TWAIN, WIA, Scanning noise level: 53 dB. Standard input capacity: 1 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Plain paper, Plastic Card, Card thickness (max): 1.24 mm
| Scanning | |
|---|---|
| Maximum scan size | 215.9 x 1828.8 |
| Optical scanning resolution | 600 x 600 |
| Enhanced scan resolution | 1200 x 1200 |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 48 |
| Output colour depth | 24 |
| ADF scan speed (b/w, A4) | 15 |
| ADF scan speed (colour, A4) | 15 |
| Duplex ADF scan speed (colour, A4) | 30 |
| Black/white scanning colour modes | Grayscale, Monochrome |
| Design | |
| Scanner type | Sheet-fed scanner |
| Product colour | Black, White |
| Built-in display | No |
| Performance | |
| Scan to | E-mail, File, Image, Memory card, OCR |
| Scan drivers | ICA, SANE, TWAIN, WIA |
| Scanning noise level | 53 |
| Sound pressure level (max) | 42 |
| Internal memory | 512 |
| Compatible memory cards | MicroSD (TransFlash) |
| Input capacity | |
| Standard input capacity | 1 |
| Paper handling | |
| Scanning media types supported | Business Card, Plain paper, Plastic Card |
| Maximum ISO A-series paper size | A4 |
| Card thickness (max) | 1.24 |
| Maximum scan width | 21.6 |
| Maximum scan length | 182.9 |
| Ports & interfaces | |
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | Micro-USB B |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN |
| Network | |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK |
| Wi-Fi Direct | Yes |
| Supported network protocols (IPv4) | DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder,SNTP Client |
| Power | |
| Power supply type | USB |
| Power consumption (typical) | 3.6 |
| Power consumption (standby) | 2.2 |
| Power consumption (off) | 0.11 |
| Weight & dimensions | |
| Width | 162 |
| Depth | 76 |
| Height | 377 |
| Weight | 590 |
| Packaging data | |
| Quantity per pack | 1 |
| Package width | 377 |
| Package depth | 162 |
| Package height | 76 |
| Package weight | 1.23 |
| Packaging content | |
| Warranty card | Yes |
| Cables included | Micro-USB |
| Quick start guide | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 20 - 80 |
| Storage relative humidity (H-H) | 10 - 90 |
| Other features | |
| Spare part retention | 5 |
| Technical details | |
| Pallet type | 800 x 1200 mm |
| Logistics data | |
| Products per pallet | 216 |
| Country of origin | China |
| Master (outer) cases per pallet | 72 |
| Layers per pallet | 8 |
| Pallet gross weight | 274.3 |
| Pallet gross height | 15.9 |
| Master (outer) cases per pallet layer | 9 |
| Harmonized System (HS) code | 84716070 |
Specifications
| Brand | Brother |
