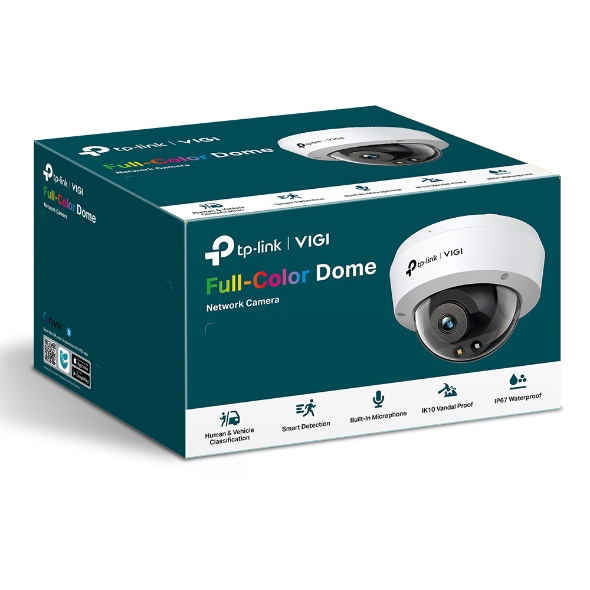

TP-Link VIGI C230, IP security camera, Indoor & outdoor, Wired, CE/BSMI/VCCI/ONVIF, Ceiling, White
TP-Link VIGI C230. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 89.1°, Lens viewing angle, vertical: 45.1°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Lens diameter: 4 mm
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE/BSMI/VCCI/ONVIF |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Plastic |
| Protection features | Waterproof |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Camera | |
| Camera pan control | Yes |
| Minimum illumination | 0.005 |
| Lens viewing angle, horizontal | 89.1 |
| Lens viewing angle, vertical | 45.1 |
| Lens viewing angle, diagonal | 106.9 |
| Pan range | 0 - 360 |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Panoramic camera | |
| Digital Wide Dynamic Range (DWDR) (panoramic camera) | Yes |
| Lens system | |
| Number of lenses | 1 |
| Lens diameter | 4 |
| Maximum aperture number | 1.6 |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 |
| B/W night vision distance | 30 |
| LED type | IR |
| Infra-red wavelength | 850 |
| Video | |
| Maximum resolution | 2304 x 1296 |
| Total megapixels | 3 |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation |
| Privacy masking | Yes |
| Bit rate | 64 Kbps to 4 Mbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Storage | |
| Built-in HDD | No |
| Security | |
| Password protection | Yes |
| Mirror | Yes |
| Password reset via email | Yes |
| Digest authentication | Yes |
| Power | |
| Power source type | DC, PoE |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 |
| Weight & dimensions | |
| Width | 115 |
| Depth | 86 |
| Height | 115 |
| Features | |
| Basic event | Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
| Packaging content | |
| Number of cameras | 1 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
