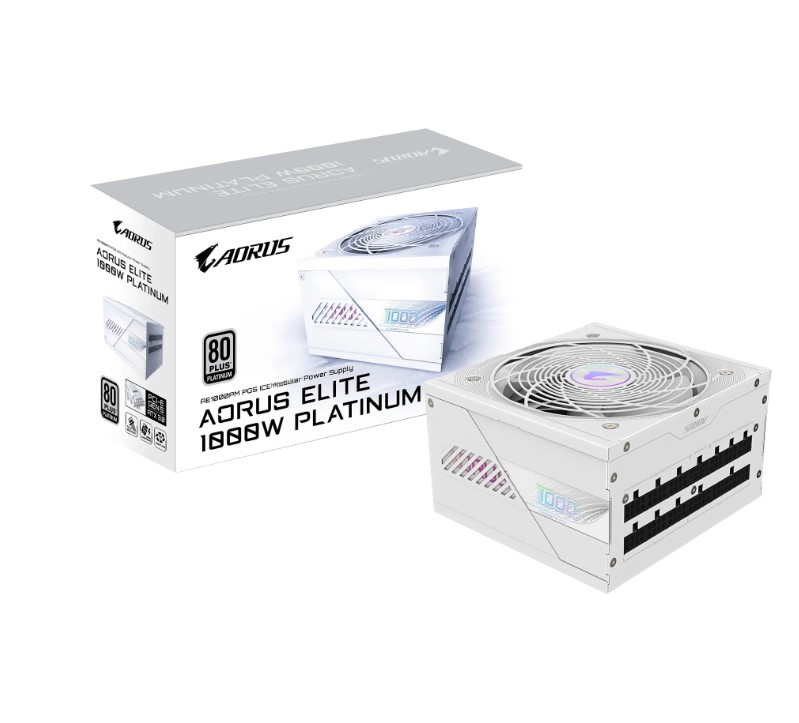

Gigabyte GP-AE1000PM PG5 ICE 1000W PSU Power Supply

Gigabyte GP-AE1000PM PG5 ICE 1000W PSU Power Supply
Model GP-AE1000PM PG5 ICE
Type Intel Form Factor ATX 12V v3.0
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 15-6.5A
Input Frequency 60-50 Hz
Output Capacity 1000W
Dimension 150 x 140 x 86mm
Fan Type 120mm Fluid Dynamic Bearing (FDB) Fan
80 PLUS Platinum
Efficiency 92% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Flat, All white
Connectors
ATX/MB 20+4 Pin x 1 : 650mm*1
CPU/EPS 4+4 Pin x 2 : 700mm*2
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

$ 308.88 308.88 AUD $ 308.88

Brand
- Gigabyte
Weight (kg)
- 3.4
Product Width (cm)
- 208
Product Height (cm)
- 118
Warranty
- 120
M.2 Length
- 344

This combination does not exist.

Add to cart

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Brand	Gigabyte
Weight (kg)	3.4
Product Width (cm)	208
Product Height (cm)	118
Warranty	120
M.2 Length	344

Gigabyte GP-AE1000PM PG5 ICE 1000W PSU Power Supply

$ 308.88 308.88 AUD $ 308.88

Not Available For Sale

Specifications
