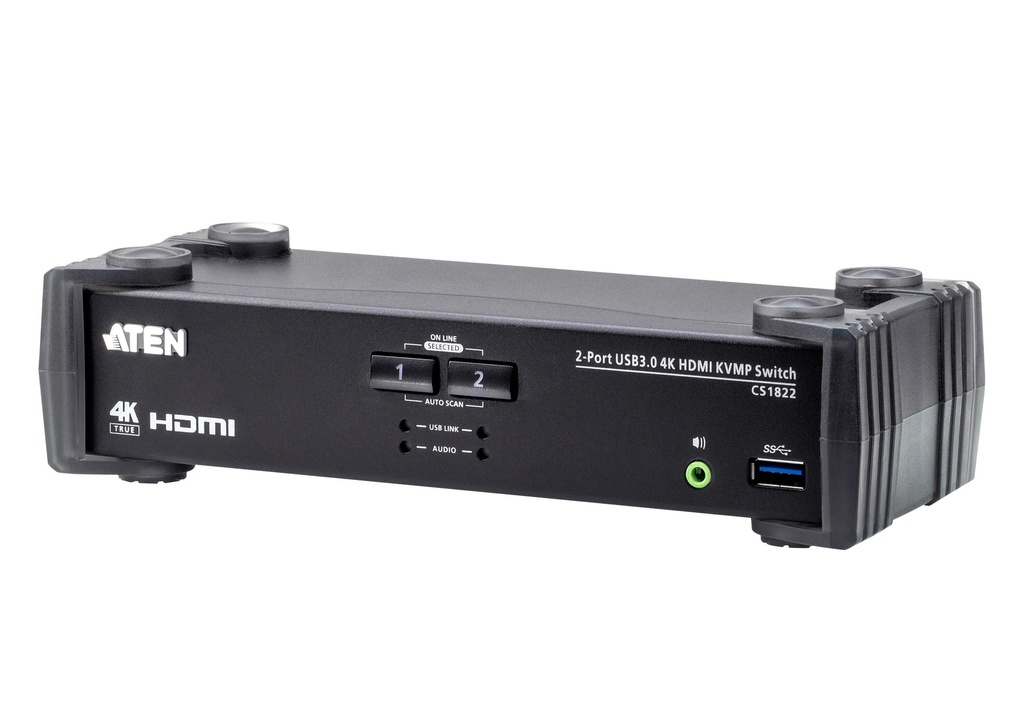

4719264649417 Aten Desktop KVMP Switch 2 Port Single Display 4k HDMI w/ audio mixer mode, Cables Included, Selection Via Front Panel

(0 review)

Product Code: 4719264649417

Aten Desktop KVMP Switch 2 Port Single Display 4k HDMI w/ audio mixer mode, Cables Included, Selection Via Front Panel
The ATEN CS1822 KVMP™ Switch offers effortless management of two HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1822 optimizes user experience of multitasking.
With patented ATEN technology – Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What’s more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.
In addition, the CS1822 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1822 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.
Integrating these outstanding functionalities, the CS1822 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.

409.00 409.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 2-Port USB 3.0 4K HDMI KVMP™ Switch with Audio Mixer Mode, 4096 x 2160 pixels, 4K Ultra HD, 1.78 W, Black

ATEN 2-Port USB 3.0 4K HDMI KVMP™ Switch with Audio Mixer Mode. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal, Plastic. Power source: DC, Input voltage: 5 V, Power consumption (typical): 1.78 W. Width: 210 mm, Depth: 88 mm, Height: 55.5 mm

Ports & interfaces
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI
HDMI ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity2
Console ports3.5mm headphone, HDMI, USB A
Console USB ports quantity2
USB hubYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
USB connector typeUSB Type-A, USB Type-B
Audio connectionsYes
Headphone outputs3
Number of microphone inputs1
DC-in jackYes
Performance
HD type4K Ultra HD
Maximum resolution4096 x 2160
Video bandwidth60
Scan interval1,5,99
Design
Product colourBlack
Housing materialMetal, Plastic
LED indicatorsYes
Push buttonYes
Hot keysYes
Display
Built-in displayNo
Power
Power sourceDC
Input voltage5
Power consumption (typical)1.78
System requirements
Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Storage relative humidity (H-H)0 - 80
Weight & dimensions
Width210
Depth88
Height55.5
Weight1.39
Packaging data
Package width100
Package depth283
Package height173
Package weight1.83
Packaging content
Quick installation guideYes
ManualYes
Logistics data
Master (outer) case net weight6.95
Harmonized System (HS) code85176200
Master (outer) case width292
Master (outer) case length517
Master (outer) case height194
Master (outer) case gross weight9.6
Products per master (outer) case5

Specifications

Brand Aten
