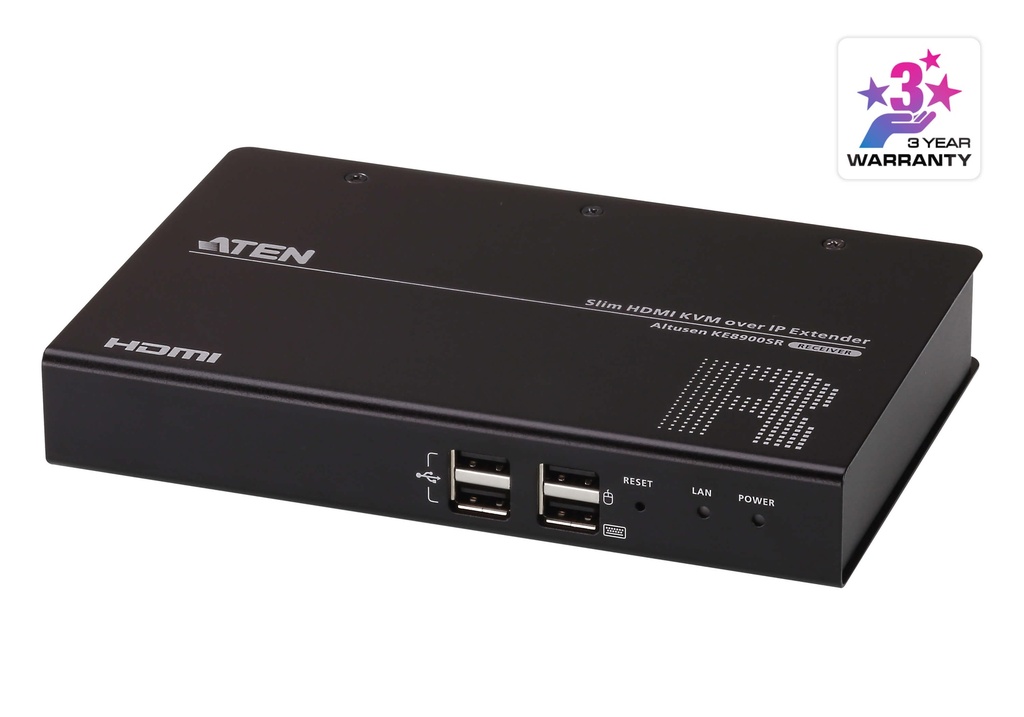

4719264647550 Aten HDMI Slim KVM over IP Receiver, supports up to 1920 x 1200 @ 60 Hz

4719264647550 Aten HDMI Slim KVM over IP Receiver, supports up to 1920 x 1200 @ 60 Hz

(0 review)

Product Code: 4719264647550

Advance processor provides visually lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz; compliant with HDMI 1.4a and HDCP 1.4
Flexible connections - allows multiple extender and matrix connections for Multi-Display installations and Video Wall applications
Slim, light, and fanless design
Push and Pull - share content instantly by just one click
Connectors
Virtual Media 2 x USB Type A Female (Black)
Console Ports 2 x USB Type A Female (Black)
1 x HDMI Female (Black)
1 x DB-9 Male (Black)
Power 1 x DC Jack (Black)
LAN Ports 1 x RJ-45 (Black)
Switches
Reset 1 x Semi-recessed Pushbutton
LEDs
10/100/1000 Mbps 1 (10: Orange / 100: Orange Green / 1000: Green)
Power 1 (Blue)
Emulation
Keyboard / Mouse USB
Power Consumption DC5V:4.35W:46BTU
Video Resolution Up to 1920 x 1200 @ 60Hz
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Humidity 0–95% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.64 kg ( 1.41 lb )
Dimensions (L x W x H) 18.20 x 11.75 x 2.87 cm
(7.17 x 4.63 x 1.13 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Contents
1x Slim HDMI Single Display KVM over IP Receiver
1x Power Adapter
1x Mounting Kit
1x HDMI Lockpro
1x User Instructions

$ 1,159.00 $ 1,159.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN HDMI Slim KVM over IP Receiver, Receiver, Wired, 1920 x 1200 pixels, OSD, Push-buttons, 640 x 480 - 1920 x 1200, Black

ATEN HDMI Slim KVM over IP Receiver. Type: Receiver, Connectivity technology: Wired, Maximum digital resolution: 1920 x 1200 pixels. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. USB port type: USB Type-A. AC adapter output voltage: 5 V, Power consumption (receiver) (max): 4.35 W. Receiver width: 18.2 cm, Receiver depth: 11.8 cm, Receiver height: 2.87 cm

Features
TypeReceiver
Connectivity technologyWired
Rack mountingYes
Maximum digital resolution1920 x 1200
KVM port selectionOSD, Push-buttons
Supported resolutions640 x 480 - 1920 x 1200
On Screen Display (OSD)Yes
Product colourBlack
MaterialMetal
LED indicatorsYes
Receiver
Receiver local video port typeHDMI
Receiver local keyboard/mouse port typeUSB
RJ-45 ports quantity (receiver)1
Ports & interfaces
USB port typeUSB Type-A
USB 2.0 ports quantity4
RS-232 ports1
Power
AC adapter output voltage5
Power consumption (receiver) (max)4.35
Weight & dimensions
Receiver width18.2
Receiver depth11.8
Receiver height2.87
Receiver weight640
Packaging data
Package width100
Package depth283
Package height173
Package weight1.04
Packaging content
AC adapter includedYes
ManualYes
Mounting bracket(s) includedYes
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 95
Technical details
Weight1.01
Logistics data
Master (outer) case net weight5.05
Harmonized System (HS) code84733080
Master (outer) case width292
Master (outer) case length517
Master (outer) case height194
Master (outer) case gross weight5.74
Products per master (outer) case5

Specifications

Brand Aten
