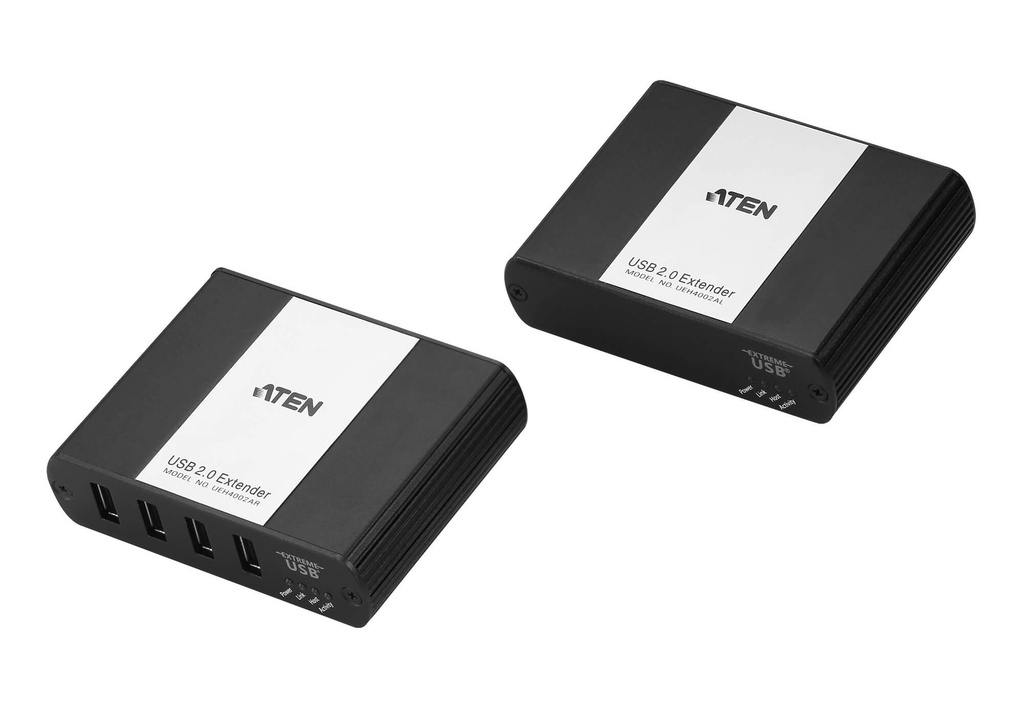

4719264645938 Aten USB 2.0 Cat 5 Extender with 4-Port Hub, ExtremeUSB feature supports transparent USB extension, extends up to 100m

(0 review)

Product Code: 4719264645938

Extends USB transmission distance up to 100 m
Supports all USB 2.0 devices up to 480 Mbps
ExtremeUSB® – supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
Fully compliant with USB Electrical and Timing
The UEH4002A 4-port USB 2.0 CAT 5 Extender incorporates patented ExtremeUSB® technology that enables users to extend beyond the standard 5 meter cable limit for USB peripheral devices.
The UEH4002A provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication. A true plug-and-play solution, the UEH4002A is compatible with all leading operating systems, and supports all USB peripherals such as flash drives, keyboards, mice, webcams and interactive whiteboards across a dedicated CAT 5e connection. An integrated four port hub allows for extension of up to four USB devices without the need for an additional hub.
Package Contents
1x UEH4002AL 4-Port Cat 5 USB 2.0 Extender (Local unit)
1x UEH4002AR 4-Port Cat 5 USB 2.0 Extender (Remote unit)
1x AC Power Adapter
1x USB 2.0 Type-A to Type-B Cable (1.8m)
1x User Instructions

739.00 739.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 4Port USB 2.0 Cat 5 Extender(UP TO 100M), AV transmitter & receiver, 100 m, Wired, Black, White

ATEN 4Port USB 2.0 Cat 5 Extender(UP TO 100M). Type: AV transmitter & receiver, Cable types supported: Cat5e, Maximum transfer distance: 100 m. Connectivity technology: Wired. Weight: 630 g, Receiver dimensions (WxDxH): 100 x 76 x 26 mm, Receiver weight: 190 g. Package width: 59 mm, Package depth: 239 mm, Package height: 160 mm. Cables included: USB

Features
TypeAV transmitter & receiver
Cable types supportedCat5e
Maximum transfer distance100
LED indicatorsYes
Plug and PlayYes
Product colourBlack, White
Windows operating systems supportedYes
Mac operating systems supportedYes
Ports & interfaces
Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
USB ports quantity5
USB version2.0
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 70
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Weight630
Receiver dimensions (WxDxH)100 x 76 x 26
Receiver weight190
Transmitter dimensions (WxDxH)100 x 76 x 26
Transmitter weight190
Packaging data
Package width59
Package depth239
Package height160
Package weight680
Packaging content
AC adapter includedYes
Cables includedUSB
Quick start guideYes
Technical details
Compliance certificatesRoHS
Logistics data
Master (outer) case width250
Master (outer) case length325
Master (outer) case height175
Master (outer) case gross weight3.77
Master (outer) case net weight3.15
Products per master (outer) case5

Specifications

Brand Aten
