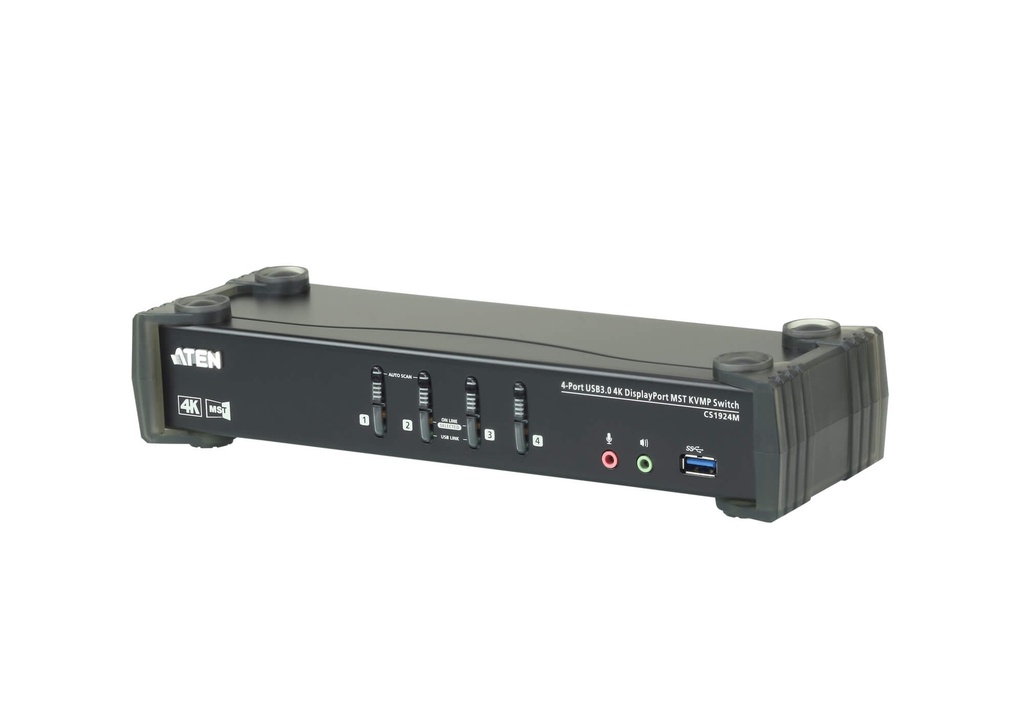

4719264645839 Aten Desktop KVMP Switch 4 Port Single to Dual Display 4k DisplayPort MST w/ audio, Cables Included, 2x USB Port, Selection Via Front Panel

(0 review)

Product Code: 4719264645839

Aten Desktop KVMP Switch 4 Port Single to Dual Display 4k DisplayPort MST w/ audio, Cables Included, 2x USB Port, Selection Via Front Panel
Incorporating the latest Multi-Stream Transport (MST) technology, the CS1924M 4-Port USB 3.0 4K DisplayPort MST KVMP™ Switch is the world’s first DisplayPort KVM switch with a built-in MST hub. The CS1924M enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections.
To meet the ever-increasing demand for high-speed peripheral data transmissions, the CS1924M integrates a USB 3.1 Gen 1 hub to deliver unprecedented data transfer rates up to 5 Gbps – allowing you to maximize multitasking operations.
The unique independent switching feature allows the KVM switch’s focus to be on one computer while its USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a print server or splitter. Additionally, the switch allows you to share the audio from each of the connected computers and even allows HD audio transmitted through a DisplayPort source.
With a rich feature set, the CS1924M is designed to exceed the requirements such as excellent video quality and ultra-fast data transmission speed for gaming, graphic design, animation, and video-editing applications.



939.00 939.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 4-Port USB 3.0 4K DisplayPort MST KVMP Switch, 4096 x 2160 pixels, 4K Ultra HD, 4.89 W, Black

ATEN 4-Port USB 3.0 4K DisplayPort MST KVMP Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal, Plastic. Power source: DC, Input voltage: 5 V, Power consumption (typical): 4.89 W. Width: 270 mm, Depth: 88 mm, Height: 55.5 mm

Ports & interfaces
Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI
DisplayPorts quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity2
Console ports3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
Console USB ports quantity2
USB hubYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
USB connector typeUSB Type-A, USB Type-B
Audio connectionsYes
Headphone outputs6
Number of microphone inputs6
DC-in jackYes
Performance
HD type4K Ultra HD
Maximum resolution4096 x 2160
Video bandwidth60
Scan interval1,5,99
Design
Product colourBlack
Housing materialMetal, Plastic
LED indicatorsYes
Push buttonYes
Hot keysYes
Display
Built-in displayNo
Power
Power sourceDC
Input voltage5
Power consumption (typical)4.89
System requirements
Windows operating systems supportedYes
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Storage relative humidity (H-H)0 - 80
Weight & dimensions
Width270
Depth88
Height55.5
Weight2.01
Packaging data
Package width98
Package depth325
Package height210
Package weight2.56
Packaging content
Quick installation guideYes
ManualYes
Logistics data
Master (outer) case net weight10.1
Harmonized System (HS) code85176200
Master (outer) case width342
Master (outer) case length512
Master (outer) case height232
Master (outer) case gross weight13.7
Products per master (outer) case5

Specifications

Brand Aten
