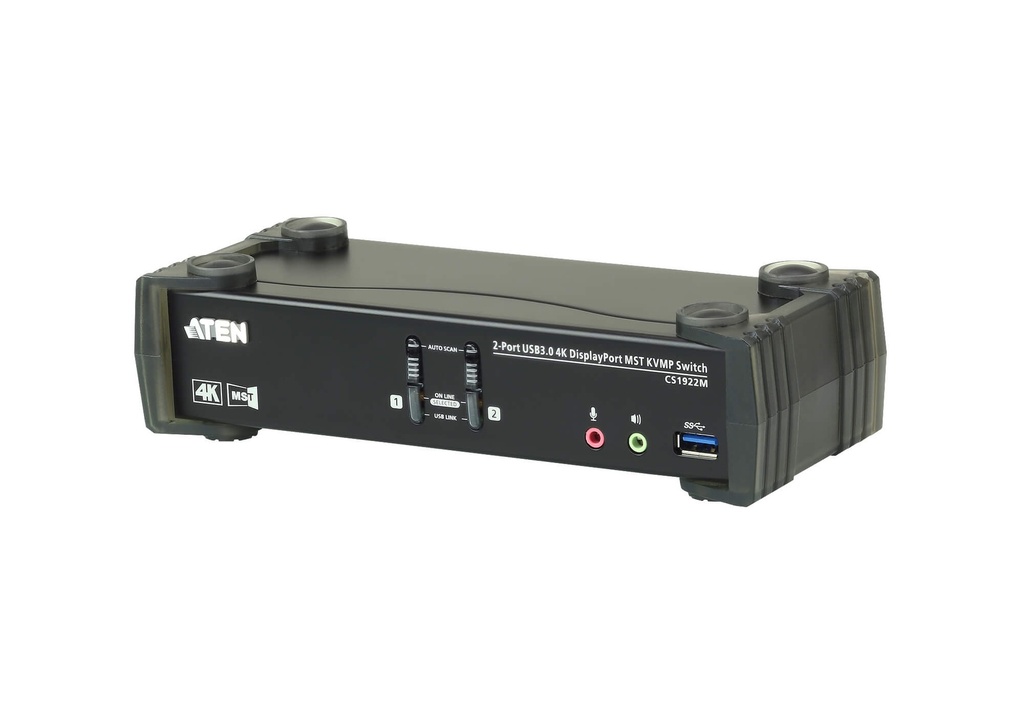

4719264645822 Aten Desktop KVMP Switch 2 Port Single to Dual Display 4k DisplayPort MST w/ audio, Cables Included, 2x USB Port, Selection Via Front Panel

(0 review)

Product Code: 4719264645822

Aten Desktop KVMP Switch 2 Port Single to Dual Display 4k DisplayPort MST w/ audio, Cables Included, 2x USB Port, Selection Via Front Panel
Incorporating the latest Multi-Stream Transport (MST) technology, the CS1922M 2-Port USB 3.0 4K DisplayPort MST KVMP™ Switch is the world’s first DisplayPort KVM switch with a built-in MST hub. The CS1922M enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections.
To meet the ever-increasing demand for high-speed peripheral data transmissions, the CS1922M integrates a USB 3.1 Gen 1 hub to deliver unprecedented data transfer rates up to 5 Gbps – allowing you to maximize multitasking operations.
The unique independent switching feature allows the KVM switch’s focus to be on one computer while its USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a print server or splitter. Additionally, the switch allows you to share the audio from each of the connected computers and even allows HD audio transmitted through a DisplayPort source.
With a rich feature set, the CS1922M is designed to exceed the requirements such as excellent video quality and ultra-fast data transmission speed for gaming, graphic design, animation, and video-editing applications.



639.00 639.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 2-Port USB 3.0 4K DisplayPort MST KVMP Switch, 4096 x 2160 pixels, 4K Ultra HD, 4.09 W, Black

ATEN 2-Port USB 3.0 4K DisplayPort MST KVMP Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal, Plastic. Power source: DC, Input voltage: 5 V, Power consumption (typical): 4.09 W. Width: 210 mm, Depth: 88 mm, Height: 55.5 mm

Ports & interfaces
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity2
Console ports3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
Console USB ports quantity2
USB hubYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
USB connector typeUSB Type-A, USB Type-B
Audio connectionsYes
Headphone outputs4
Number of microphone inputs4
DC-in jackYes
Performance
HD type4K Ultra HD
Maximum resolution4096 x 2160
Video bandwidth60
Scan interval1,5,99
Firmware upgradeableYes
Design
Product colourBlack
Housing materialMetal, Plastic
LED indicatorsYes
Push buttonYes
Hot keysYes
Display
Built-in displayNo
Power
Power sourceDC
Input voltage5
Power consumption (typical)4.09
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Storage relative humidity (H-H)0 - 80
Weight & dimensions
Width210
Depth88
Height55.5
Weight560
Packaging data
Package width100
Package depth283
Package height173
Package weight1.84
Packaging content
Quick installation guideYes
ManualYes
Logistics data
Master (outer) case net weight2.8
Harmonized System (HS) code85176200
Master (outer) case width292
Master (outer) case length517
Master (outer) case height194
Master (outer) case gross weight9.85
Products per master (outer) case5

Specifications

Brand Aten
