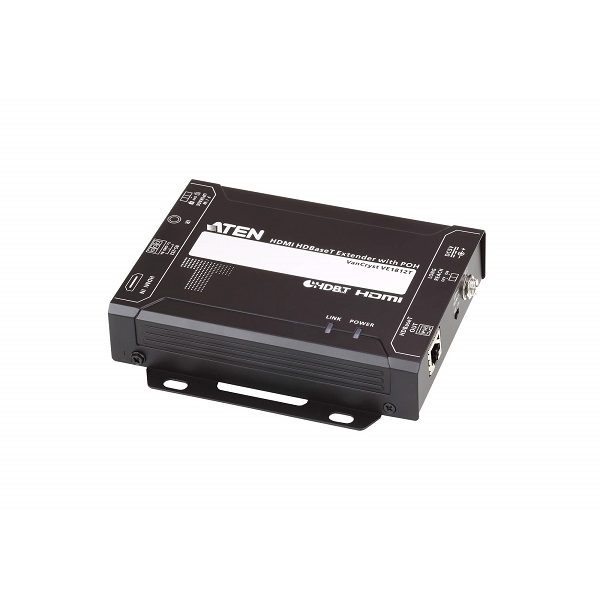

4719264645792 Aten HDBaseT HDMI Extender with POH (PROJECT)

4719264645792 Aten HDBaseT HDMI Extender with POH (PROJECT)

(0 review)

Product Code: 4719264645792

The VE1812 HDMI HDBaseT Extender with POH is the ideal solution for connecting equipment in remote locations up to 100m over a single Cat 5e / 6 / 6a cable. With Long Reach Mode enabled, the VE1812 can extend HDMI signal up to 150m @1080p. The VE1812 supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions. The VE1812 features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812 is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. The VE1812 is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.

$ 799.00 $ 799.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN HDMI HDBaseT Extender with POH, 4096 x 2160 pixels, AV transmitter & receiver, 150 m, Wired, 3D, HDCP

ATEN HDMI HDBaseT Extender with POH. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Connectivity technology: Wired. Operating voltage (transmitter): 5 V, Operating voltage (receiver): 5 V, Power consumption (transmitter) (max): 3.2 W. Weight: 1.3 kg, Receiver dimensions (WxDxH): 123 x 140.4 x 30 mm, Receiver weight: 450 g. Quantity per pack: 1 pc(s), Package width: 100 mm, Package depth: 283 mm

Features
TypeAV transmitter & receiver
Maximum resolution4096 x 2160
Cable types supportedCat5e, Cat6, Cat6a
Maximum transfer distance150
LED indicatorsYes
Supported video modes1080p
Supported graphics resolutions3840 x 2160, 4096 x 2160
Bandwidth340
HDCPYes
MaterialMetal
3DYes
Firmware upgradeableYes
Consumer Electronics Control (CEC) supportYes
Impedance100
HDCP version2.2
Product colourBlack
Ports & interfaces
Connectivity technologyWired
Ethernet LANYes
RJ-45 input ports1
RJ-45 output ports1
HDBaseT portYes
HDMI in1
Number of HDMI outputs1
RS-232 input ports1
RS-232 output ports1
Video in1
Video out1
3.5 mm (1/8-inch) inYes
3.5 mm (1/8-inch) outYes
Remote (IR) input1
Remote (IR) output1
DC-in jackYes
Power
Operating voltage (transmitter)5
Operating voltage (receiver)5
Power consumption (transmitter) (max)3.2
Power consumption (receiver) (max)5.33
External power adapterYes
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Weight1.3
Receiver dimensions (WxDxH)123 x 140.4 x 30
Receiver weight450
Transmitter dimensions (WxDxH)123 x 140.4 x 30
Transmitter weight470
Packaging data
Quantity per pack1
Package width100
Package depth283
Package height173
Package weight1.4
Packaging content
AC adapter includedYes
Quick start guideYes
Technical details
Compliance certificatesRoHS
Logistics data
Master (outer) case width292
Master (outer) case length517
Master (outer) case height194
Master (outer) case gross weight6.98
Master (outer) case net weight6.5
Products per master (outer) case5

Specifications

Brand Aten
