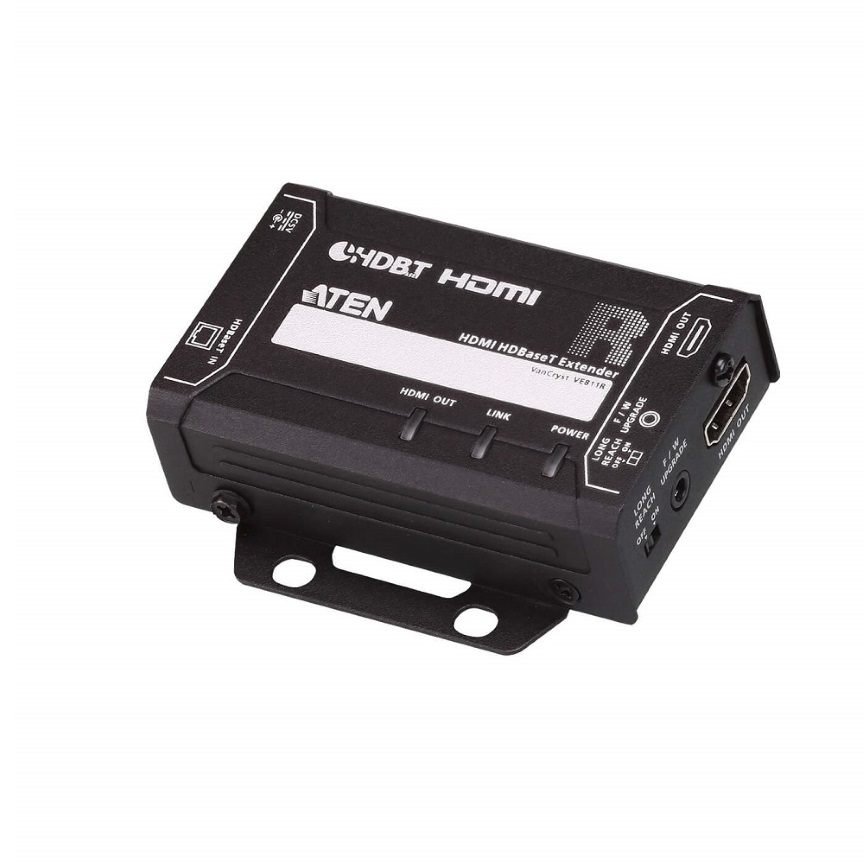

ATEN HDMI HDBaseT Small Factor Extender, 4096 x 2160 pixels, AV transmitter & receiver, 150 m, Wired, Black, HDCP
ATEN HDMI HDBaseT Small Factor Extender. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Connectivity technology: Wired. Operating voltage (transmitter): 5 V, Operating voltage (receiver): 5 V. Weight: 630 g, Receiver dimensions (WxDxH): 86.4 x 73 x 24.7 mm, Receiver weight: 170 g. Quantity per pack: 2 pc(s), Package width: 59 mm, Package depth: 239 mm
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 150 |
| Bandwidth | 340 |
| HDCP | Yes |
| Material | Metal |
| Impedance | 100 |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Audio input | 1 |
| Audio output | 1 |
| DC-in jack | Yes |
| Power | |
| Operating voltage (transmitter) | 5 |
| Operating voltage (receiver) | 5 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Storage relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Weight | 630 |
| Receiver dimensions (WxDxH) | 86.4 x 73 x 24.7 |
| Receiver weight | 170 |
| Transmitter dimensions (WxDxH) | 86.4 x 73 x 24.7 |
| Transmitter weight | 160 |
| Packaging data | |
| Quantity per pack | 2 |
| Package width | 59 |
| Package depth | 239 |
| Package height | 160 |
| Package weight | 705 |
| Packaging content | |
| Quick start guide | Yes |
| Logistics data | |
| Master (outer) case width | 250 |
| Master (outer) case length | 325 |
| Master (outer) case height | 175 |
| Master (outer) case gross weight | 4.02 |
| Master (outer) case net weight | 3.15 |
| Products per master (outer) case | 5 |
Specifications
| Brand | Aten |
