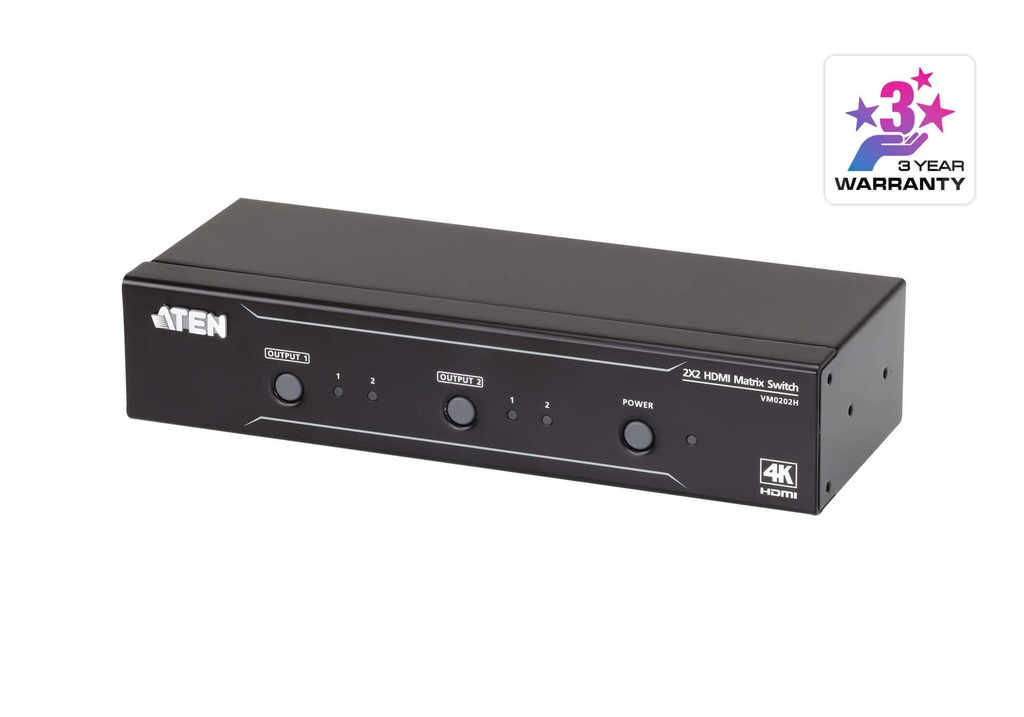

ATEN 2x2 4K HDMI Matrix Switch, up to 15m, AV matrix switcher, 10.2 Gbit/s, 340 MHz, 4096 x 2160 pixels, 4096 x 2160, 3840 x 2160, Black
ATEN 2x2 4K HDMI Matrix Switch, up to 15m. Product type: AV matrix switcher, Data transfer rate: 10.2 Gbit/s, Maximum pixel clock: 340 MHz. Housing colour: Black, Housing material: Metal, Control type: Buttons. USB connector type: Micro-USB. Power consumption (typical): 4.3 W. Products per master (outer) case: 5 pc(s), Master (outer) case gross weight: 5.33 kg, Master (outer) case length: 325 mm
| Features | |
|---|---|
| Product type | AV matrix switcher |
| Data transfer rate | 10.2 |
| Maximum pixel clock | 340 |
| Maximum resolution | 4096 x 2160 |
| HDCP | Yes |
| HDCP version | 1.4 |
| 3D | Yes |
| Firmware upgradeable | Yes |
| Extended display identification data (EDID) | Yes |
| Supported resolutions | 4096 x 2160, 3840 x 2160 |
| Design | |
| Housing colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| Control type | Buttons |
| LED indicators | Yes |
| Remote control included | Yes |
| Display | |
| Built-in display | No |
| Ports & interfaces | |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 2 |
| USB connector type | Micro-USB |
| USB ports quantity | 1 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power consumption (typical) | 4.3 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Storage relative humidity (H-H) | 0 - 80 |
| Logistics data | |
| Products per master (outer) case | 5 |
| Master (outer) case gross weight | 5.33 |
| Master (outer) case length | 325 |
| Master (outer) case width | 250 |
| Master (outer) case height | 175 |
| Master (outer) case net weight | 4.2 |
| Harmonized System (HS) code | 85299097 |
| Weight & dimensions | |
| Width | 200 |
| Depth | 76 |
| Height | 42 |
| Weight | 840 |
| Package width | 59 |
| Package depth | 239 |
| Package height | 160 |
| Package weight | 980 |
| Packaging content | |
| Rack mount kit | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| IR receiver included | Yes |
Specifications
| Brand | Aten |
