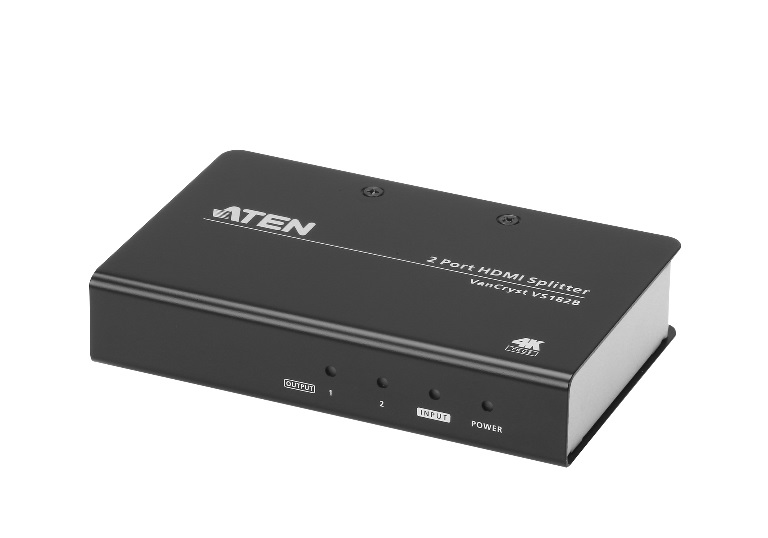

4719264645402 Aten Video Splitter 2 Port HDMI True 4K Splitter, HDCP 2.2. Support HDR. Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

(0 review)

Product Code: 4719264645402

The VS182B True 4K HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMIenabled equipment, such as DVD players, satellite set- top boxes and all HDMI monitors, displays, projectors, or TVs.
The VS182B True 4K HDMI Splitter is HDMI 2.0 compliant, 4K at 60Hz (4:4:4), and supports multiple streaming audio, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
Connects one HDMI source to two HDMI displays at the same time
HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible
Supports HDR10+
Supports max resolutions of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4)
Long distance transmission- up to 15 m(1920x1200)/ 1.8m (True 4K)*
Max pixel clock rate up to 600 MHz
Max data rate up to 18 Gbps (6 Gbps per lane)
LED indication of power status and source devices
EDID Expert™ – Selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution via EDID DIP Switch, allowing users to effortlessly switch among Port 1, Default, and Auto
Plug-and-play – No software installation required

149.00 149.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 2-Port True 4K at 60Hz (4:4:4), HDMI Splitter, HDMI, 2x HDMI, 4096 x 2160 pixels, Black, Metal, 4K Ultra HD

ATEN 2-Port True 4K at 60Hz (4:4:4), HDMI Splitter. Video port type: HDMI, Video out: 2x HDMI. Maximum resolution: 4096 x 2160 pixels, Product colour: Black, Housing material: Metal. AC input voltage: 5 V, Power consumption (typical): 4.24 W. Width: 80 mm, Depth: 125 mm, Height: 25 mm. Quantity per pack: 1 pc(s), Package width: 59 mm, Package depth: 239 mm

Ports & interfaces
Video port typeHDMI
Video out2x HDMI
Video ports quantity3
DC-in jackYes
Features
Product colourBlack
Housing materialMetal
Maximum resolution4096 x 2160
HD type4K Ultra HD
3DYes
Maximum operating distance5
Maximum refresh rate60
Bandwidth600
HDCP version2.2
High Dynamic Range (HDR) technologyHigh Dynamic Range 10+ (HDR10 Plus)
HDCPYes
Plug and PlayYes
LED indicatorsYes
Power
AC input voltage5
Power consumption (typical)4.24
Weight & dimensions
Width80
Depth125
Height25
Weight500
Packaging data
Quantity per pack1
Package width59
Package depth239
Package height160
Package weight670
Packaging content
ManualYes
Cables includedHDMI
AC adapter includedYes
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Storage relative humidity (H-H)0 - 80
Logistics data
Master (outer) case net weight10
Harmonized System (HS) code85176990
Master (outer) case width315
Master (outer) case length490
Master (outer) case height338
Master (outer) case gross weight14.4
Products per master (outer) case20

Specifications

Brand Aten
