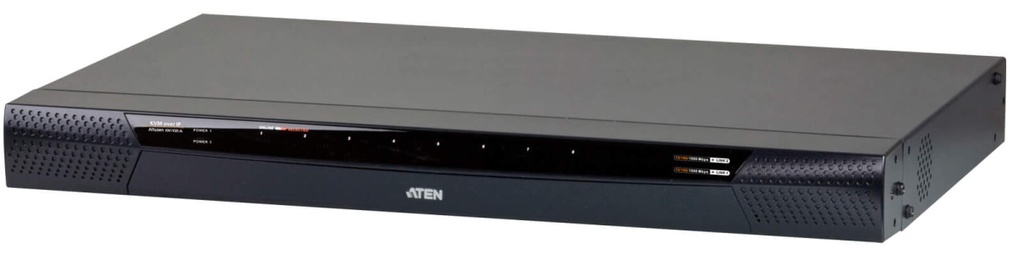

ATEN 8-Port 2-Bus CAT5e/6 KVM Over IP Switch, LUC (Laptop USB Console), with Audio & Virtual Media Support, 1920 x 1200 pixels, Ethernet LAN, 1U, Black
ATEN 8-Port 2-Bus CAT5e/6 KVM Over IP Switch, LUC (Laptop USB Console), with Audio & Virtual Media Support. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Security algorithms: 802.1x RADIUS, FIPS 140-2, RSA, SSL/TLS. Maximum resolution: 1920 x 1200 pixels, Scan interval: 1,255 s, Number of users: 64 user(s). Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 / 60 Hz
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Console ports | USB A, Mini-DIN |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 3 |
| USB connector type | Mini-USB B, USB Type-A |
| PS/2 ports quantity | 2 |
| Serial port type | RJ-45 |
| Serial ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 14 |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Security algorithms | 802.1x RADIUS, FIPS 140-2, RSA, SSL/TLS |
| Performance | |
| Maximum resolution | 1920 x 1200 |
| Scan interval | 1,255 |
| Number of users | 64 |
| Firmware upgradeable | Yes |
| Design | |
| Rack mounting | No |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal |
| Wired remote switch | Yes |
| Cascadable | Yes |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Input voltage | 100 - 240 |
| AC input frequency | 50 / 60 |
| Input current | 1 |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Width | 438.4 |
| Depth | 287.8 |
| Height | 44 |
| Weight | 4.37 |
| Packaging data | |
| Package width | 338 |
| Package depth | 515 |
| Package height | 155 |
| Package weight | 5.58 |
| Packaging content | |
| Cables included | AC |
| Manual | Yes |
| Rack mount kit | Yes |
| Logistics data | |
| Master (outer) case net weight | 4.37 |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 338 |
| Master (outer) case length | 515 |
| Master (outer) case height | 155 |
| Master (outer) case gross weight | 5.58 |
| Products per master (outer) case | 1 |
Specifications
| Brand | Aten |
