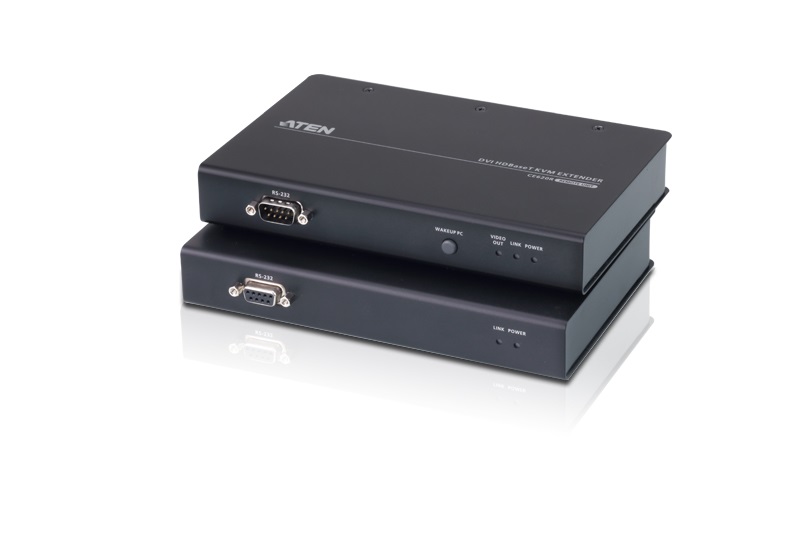

4719264645136 Aten HDBaseT 2.0 DVI KVM Console Extender with IR, RS232(4K 60Hz@100m,Cat6)

4719264645136 Aten HDBaseT 2.0 DVI KVM Console Extender with IR, RS232(4K 60Hz@100m,Cat6)

(0 review)

Product Code: 4719264645136

The ATEN CE620 USB DVI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. The CE620 delivers high-quality DVI video, PCM 2-channel digital audio, USB 2.0 and RS-232 signals up to 100 meters from the source computer using a single Cat5e/6 cable. With a simple cable installation supporting various signals, the CE620 is ideal for applications where convenient remote access is required - in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.

$ 959.00 $ 959.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN USB 2.0 DVI Single Link over 1 CAT Cable (100m) KVM Extender with Full USB2.0 support (up to 480Mbps) / HDBaseT2.0, Transmitter & receiver, Wired, 100 m, Cat5e, Cat6, Cat6a, Black, Metal

ATEN USB 2.0 DVI Single Link over 1 CAT Cable (100m) KVM Extender with Full USB2.0 support (up to 480Mbps) / HDBaseT2.0. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 100 m. Transmitter local video port type: DVI-D. Receiver local video port type: DVI-D. Power consumption (transmitter) (max): 3 W, Power consumption (receiver) (max): 5.6 W. Transmitter width: 18.2 cm, Transmitter depth: 12.3 cm, Transmitter height: 2.87 cm

Features
TypeTransmitter & receiver
Connectivity technologyWired
Maximum transfer distance100
Cable types supportedCat5e, Cat6, Cat6a
Product colourBlack
MaterialMetal
Transmitter
Transmitter local video portYes
Transmitter local video port typeDVI-D
Receiver
Receiver local video port typeDVI-D
Power
Power consumption (transmitter) (max)3
Power consumption (receiver) (max)5.6
Weight & dimensions
Transmitter width18.2
Transmitter depth12.3
Transmitter height2.87
Transmitter weight630
Receiver width18.2
Receiver depth12.3
Receiver height2.87
Receiver weight640
Packaging content
AC adapter includedYes
Cables includedDVI
ManualYes
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Other features
Firmware upgradeableYes

Specifications

Brand Aten
