4719264642418 Aten Rackmount KVM Switch 16 Port VGA PS/2-USB w/ 19" LCD Display, 2x Custom KVM Cables Included, 1280x1024@75hz Display, LED Illumination

(0 review)

Product Code: 4719264642418

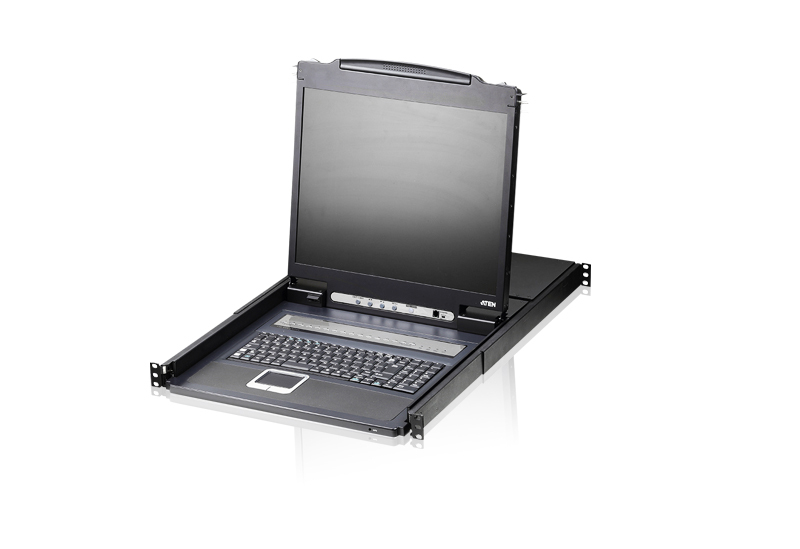

With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing. The CL-1316 LCD KVM Switch features an integrated 19" LCD panel allowing access and control with up to 16 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers. The CL-1316 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system. Aten48EOFY

1,749.00 1,749.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 16-Port 19" LCD KVM Switch (USB - PS/2 VGA), 48.3 cm (19"), 1280 x 1024 pixels, LCD, 250 cd/m², 1000:1, 170°

ATEN 16-Port 19" LCD KVM Switch (USB - PS/2 VGA). Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, Display: LCD. Keyboard language: US English, Keyboard layout: QWERTY. Power consumption (typical): 26.1 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50 - 60 Hz. Width: 689 mm, Height: 44 mm, Depth: 483 mm. Package weight: 16.3 kg, Package width: 668 mm, Package depth: 833 mm

Display
Display diagonal48.3
Display resolution1280 x 1024
DisplayLCD
Display brightness250
Contrast ratio (typical)1000:1
Viewing angle, horizontal170
Viewing angle, vertical160
On Screen Display (OSD)Yes
Pixel pitch0.294 x 0.294
Response time5
Display number of colours16.78 million colours
Technical details
MaterialMetal, Plastic
Product colourBlack
Hot-Plug supportYes
Operating relative humidity (H-H)0 - 80
Maximum resolution1920 x 1200
Rack mountingYes
Connector typeSPHD
Daisy chainYes
Number of computers controlled16
Rack capacity1U
Keyboard
Built-in touchpadYes
Keyboard languageUS English
Keyboard layoutQWERTY
Hot keysYes
Power
Power consumption (typical)26.1
AC adapter input voltage100 - 240
AC adapter frequency50 - 60
Input current1
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Weight & dimensions
Width689
Height44
Depth483
Weight13.3
Packaging data
Package weight16.3
Package width668
Package depth833
Package height135
Packaging content
Cables includedAC, KVM
ManualYes
Logistics data
Master (outer) case net weight13.3
Master (outer) case width668
Master (outer) case length833
Master (outer) case height135
Master (outer) case gross weight16.3
Products per master (outer) case1

Specifications

Brand Aten
