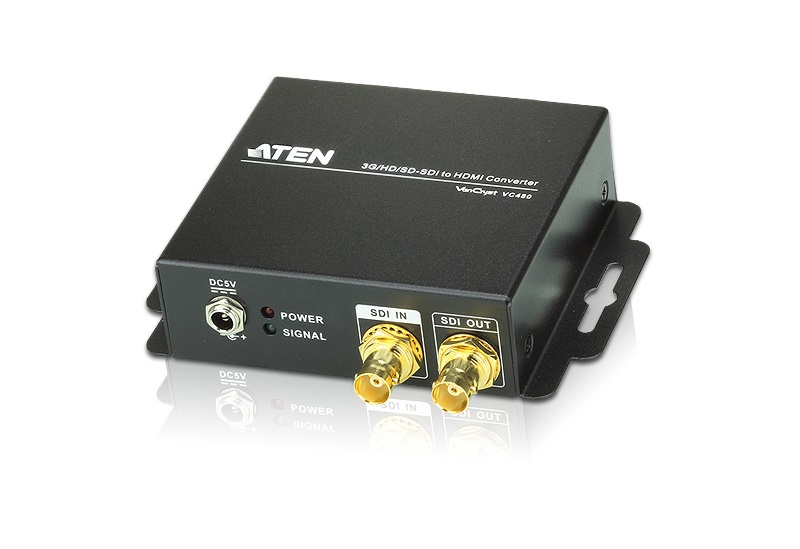

Aten Professional Converter 3G/HD/SD-SDI TO HDMI/Audio Converter

Aten Professional Converter 3G/HD/SD-SDI TO HDMI/Audio Converter

Brand: Aten SKU: 4719264641718
(0 review)

Product Code: 4719264641718

The VC480 3G/HD/SD SDI to HDMI Converter provides a professional way to exchange high definition signals in real time. The SDI and HDMI signal conversion is 100% digital and guarantees no loss of quality for both the audio and video transmission. The VC480 is the most dependable way to convert signals with confidence when monitoring in any post or broadcast application.
Converts an 3G/HD/SD-SDI input signal to HDMI formats in real time while avoiding transformation loss for both audio and video signals
Supports additional analog stereo audio and coaxial digital audio
HDMI (Deep Color)
LED indication of power and signal status
Supports an SDI distance of up to 295 ft. (90M) (3G-SDI), 492 ft. (150M) (HDSDI) or 985 ft. (300M) (SD-SDI) of RG6
Supported SDI formats:
• SD-SDI (SMPTE 259M, up to 270Mbps)
• HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)
• 3G-SDI (SMPTE 424M, 425M level A,B, up to 2.97Gbps)
Video Support:
525i@59.96, 625i@50
720p@23.98/24/25/29.94/30/50/59.94/60
1080i@50/59.94/60
1080p@23.97/24/25/29.97/30/50/59.94/60
Buffered loop-through output provides extended monitoring
Supports 8 audio channels @48kHz rate
Features automatic detection of 3G/HD/SD-SDI signals
Reclocking SDI signals for cascading and thus longer transmission
Locking power connector for secure communications

$ 434.07 $ 434.07

  • Availability
  • Brand
Available to order
Call 1300 308 646 for lead time
  • Australia Post Parcel & Express — live quote at checkout, Australia-wide
  • Prices include GST — tax invoice with every order
  • 30-day money-back guarantee
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Availability: Available to order
Brand: Aten

Key specifications

Brand Aten
Our SKU 4719264641718
Barcode (EAN/UPC) 4719264641718

Specifications

ATEN VC480, Black, BNC, HDMI, BNC, 5 V, 0 - 40 °C, -20 - 60 °C

ATEN VC480. Product colour: Black. Host interface: BNC, Output interface: HDMI, BNC. Input voltage: 5 V. Width: 108.7 mm, Depth: 123 mm, Height: 30.5 mm

Features
Product colourBlack
Ports & interfaces
Host interfaceBNC
Output interfaceHDMI, BNC
Power
Input voltage5
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)20 - 90
Weight & dimensions
Width108.7
Depth123
Height30.5
Weight290
Logistics data
Harmonized System (HS) code85176990
