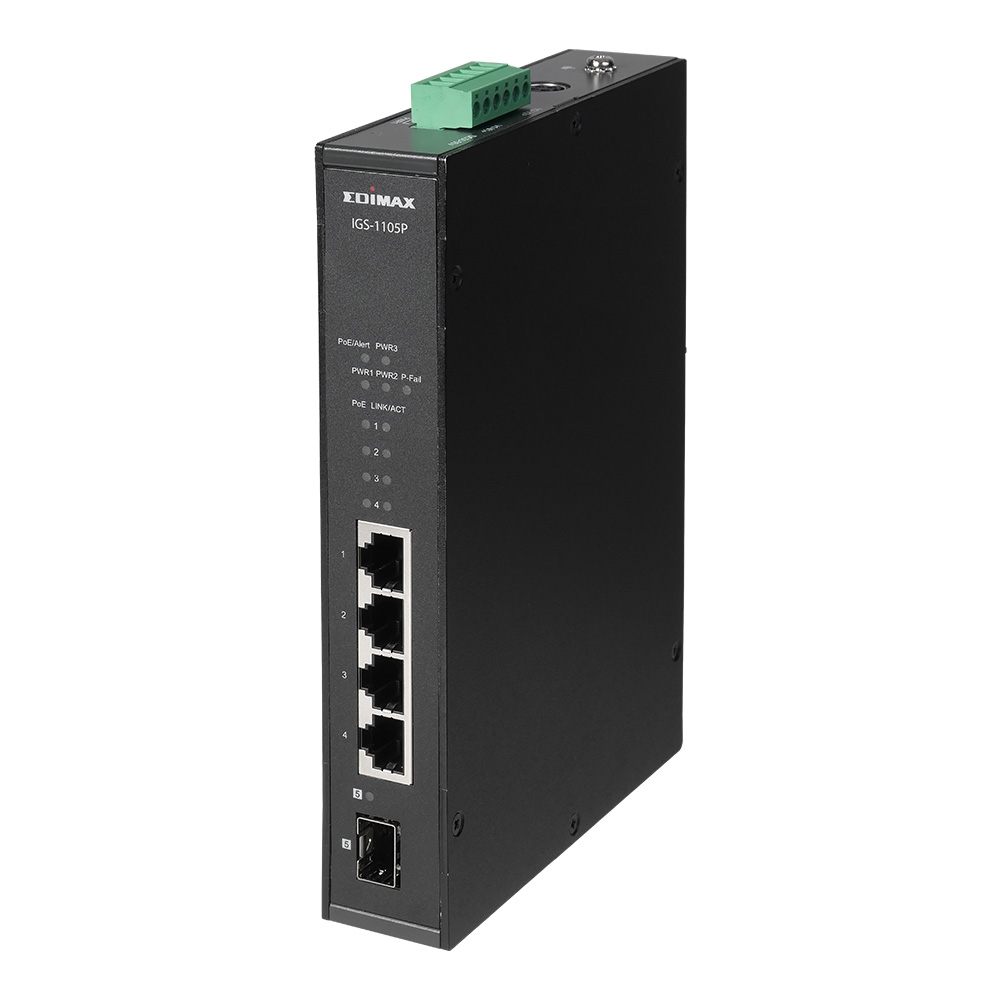

Industrial 5-Port Gigabit PoE+ Din-Rail Switch with 1 SFP Port
IGS-1105P
4 Gigabit Ethernet PoE+ ports and 1 SFP uplink port
6KV Surge protection to avoid damage of the switch and connected devices
Power redundancy by providing Dual-DC power inputs to ensure stable and reliable network service
P-fail relay with alarm and notification when an event of power failure occurs
Supports QoS 802.1p for video voice traffic priority
Wide operating temperature range of -20° ~+70° C (-4° ~+158° F)
IEEE 802.3af/at PoE compliant, supports up to 30W per port (power budget: up to 120Watts)
Guaranteed PoE long distance to 200 meters (656 ft.)
Power backfeed protection to avoid damaging the PoE ports
Flexible deployment with DIN-Rail mounting kit and wall-mount feature
IP30-rated, fanless rugged industrial design for harsh environments
PECIFICATIONS
HARDWARE
Ports 4 x RJ-45 10/100/1000Base-T Gigabit PoE+ Ports
1 x SFP Ports
Connector Removable 6-pin Terminal Block (Pin1/2 for Power 1, Pin 3/4 for P-Fail (Power Failure Alarm Relay), Pin 5/6 for Power 2)
Grounding Point with Screw
DC In (48-55V) Power Jack (for Power 3)
LED Indicators Per Port: Link/Act, PoE
Per Unit: PoE/Alert, PWR1, PWR2, PWR3, P-Fail
Power Input
External Power Supply
Power Input: 48V~55VDC (Terminal Block)
Redundant Power Input:48~55VDC (Terminal Block)
DC Input: 48~55VDC
Operating Current: 0.25A@50VDC, 12.5W (System)
Mounting DIN-rail Mount (DIN-rail Mount Kit Included) / Wall Mount
Housing Metal, IP30-rated
Fan Fanless
Dimensions 180(H) x 32(D) x 130(W) mm
Weight 675g
PERFORMANCE
Switching Capacity 10Gbps
MAC Address 2K
Buffer Memory 2Mb
Jumbo Frame 9KB
Transmission Method Store and Forward
Filtering / Forwarding Rates Max. 7.44Mpps
1000Mbps port – 1,488,000pps
100Mbps port – 148,800pps
10Mbps port – 14,880pps
Advanced Feature IEEE 802.1p Quality of Service (QoS)
POWER OVER ETHERNET
Standard IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Power Output Up to 30W pe
