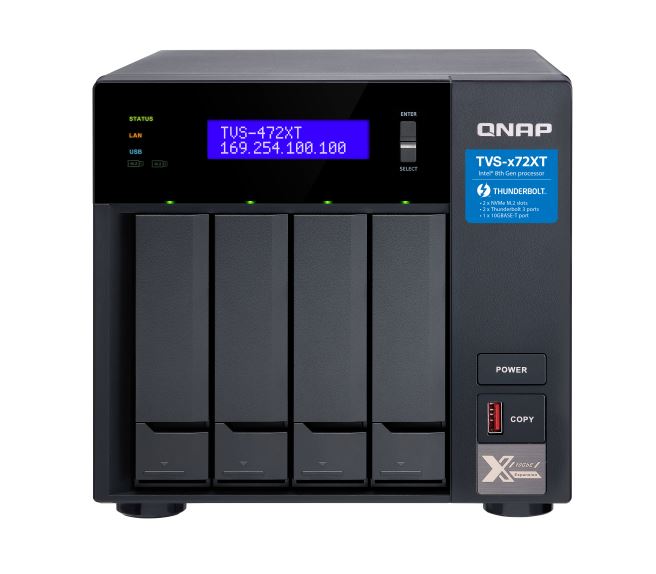

QNAP TVS-472XT, NAS, Tower, Intel® Pentium®, 4 GB, DDR4, 0 TB
QNAP TVS-472XT. Type: NAS. Chassis type: Tower. Device class: Home & Home Office. Processor family: Intel® Pentium®. Internal memory: 4 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: QNAP QTS
| Storage | |
|---|---|
| Storage drive capacity | 0 |
| Supported storage drive interfaces | M.2, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Number of M.2 (M & B) slots | 2 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Storage drives installed | No |
| Total installed storage capacity | 0 |
| Number of storage drives supported | 4 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Bad block scan | Yes |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® |
| On-board graphics card model | Intel® UHD Graphics 610 |
| Memory | |
| Internal memory | 4 |
| Internal memory type | DDR4 |
| Maximum RAM supported | 64 |
| Memory slots | 2 |
| Memory form factor | SO-DIMM |
| Flash memory | 5000 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,2500,5000,10000 |
| Ethernet LAN data rate supported (max) | 10000 |
| DHCP client | Yes |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Supported network protocols | TCP/IP, IPv4, IPv6 |
| Link aggregation | Yes |
| Load balancing system | Yes |
| Dynamic DNS (DDNS) | Yes |
| WLAN adapter supported | Yes |
| Ports & interfaces | |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Thunderbolt 3 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| 3.5 mm (1/8-inch) out | No |
| Microphone in | No |
| Audio in/out | No |
| Concurrent connections | 700 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Graphics | |
| On-board graphics card base frequency | 350 |
| On-board graphics card dynamic frequency (max) | 1050 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E90/x93 |
| Maximum on-board graphics card memory | 64 |
| Number of displays supported (on-board graphics) | 3 |
| Design | |
| Chassis type | Tower |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 3 |
| Fan diameter | 12 |
| Fan diameter 2 | 6 |
| LED indicators | HDD, LAN, Status, USB |
| Built-in display | Yes |
| Display type | LCD |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Performance | |
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Backup features | iSCSI LUN |
| Buzzer | Yes |
| Multilingual support | Yes |
| Noise level | 21.2 |
| Snapshot | Yes |
| Web-based management | Yes |
| Share folder access right management | Yes |
| Security algorithms | 256-bit AES, HTTPS, SSH, SSL/TLS |
| Access Control List (ACL) | Yes |
| Reset button | Yes |
| On/off switch | Yes |
| Built-in iTunes server | Yes |
| Built-in FTP server | Yes |
| Browser supported | Apple Safari, Google Chrome, Microsoft Internet Explorer, Mozilla Firefox |
| System log | Yes |
| Hot spare | Yes |
| S.M.A.R.T. support | Yes |
| Share folder | CIFS/SMB |
| Remotely operated | Yes |
| Universal Plug and Play (UPnP) | Yes |
| USB copy function | Yes |
| Software | |
| Operating system installed | QNAP QTS |
| Operating system version | 5.0.0 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Linux operating systems supported | CentOS 7.0, SuSE Linux 12.0, SuSE Linux 12.3, SuSE Linux 15, Ubuntu 14.04, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04, Ubuntu 16.10, Ubuntu 17.10, Ubuntu 18.04 LTS, Ubuntu 20.04 LTS |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Other operating systems supported | IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 11 |
| Power | |
| Power supply unit (PSU) capacity | 250 |
| Power consumption (typical) | 37.32 |
| Power consumption (HDD standby) | 24.14 |
| AC input voltage | 100 - 240 |
| Fan voltage | 12 |
| Weight & dimensions | |
| Width | 199.3 |
| Depth | 279.6 |
| Height | 188.2 |
| Weight | 5.4 |
| Package weight | 7.01 |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| Quick installation guide | Yes |
| Number of screws | 24 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 5 - 95 |
| Storage temperature (T-T) | -20 - 70 |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
Specifications
| Brand | Intel |
