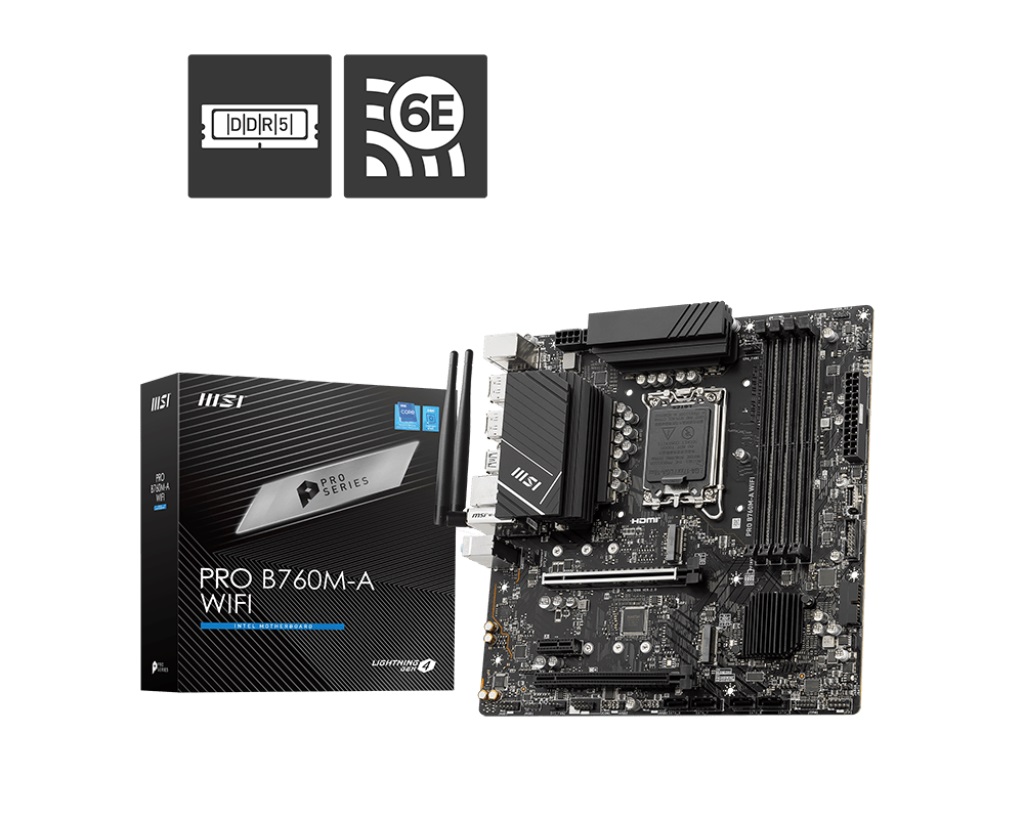

MSI PRO B760M-A WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 192 GB
MSI PRO B760M-A WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 |
| Supported memory clock speed (max) | 6800 |
| Maximum internal memory | 192 |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Internal I/O | |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Features | |
| Motherboard chipset | Intel B760 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 |
| ACPI version | 6.4 |
| Clear CMOS jumper | Yes |
| System Management BIOS (SMBIOS) version | 3.5 |
| Weight & dimensions | |
| Width | 243.8 |
| Depth | 243.8 |
Specifications
| Brand | MSI |
