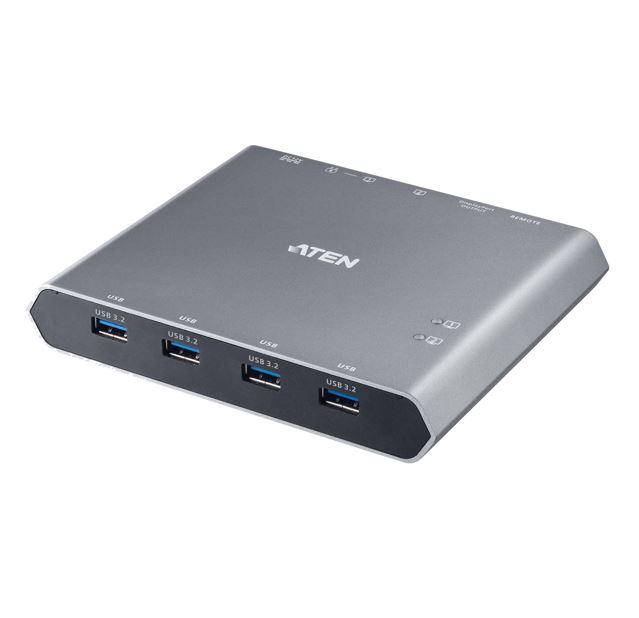

ATEN 2-Port 4K DisplayPort USB-C KVM Dock Switch with Power Pass-through, 3840 x 2160 pixels, 4K Ultra HD, Silver
ATEN 2-Port 4K DisplayPort USB-C KVM Dock Switch with Power Pass-through. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Silver, Housing material: Aluminium. Power source: DC, Input voltage: 12 V, Input current: 3 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina,..., Other operating systems supported: Android
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 1 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 4 |
| USB Type-C ports quantity | 3 |
| DC-in jack | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 |
| Video bandwidth | 60 |
| Data transfer rate (max) | 5 |
| Plug and Play | Yes |
| Design | |
| Product colour | Silver |
| Housing material | Aluminium |
| Wired remote switch | Yes |
| LED indicators | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Input voltage | 12 |
| Input current | 3 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Other operating systems supported | Android |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Width | 119 |
| Depth | 143 |
| Height | 23.8 |
| Weight | 350 |
| Packaging data | |
| Package width | 62 |
| Package depth | 283 |
| Package height | 173 |
| Package volume | 1982.18 |
| Package weight | 1.01 |
| Packaging content | |
| Cables included | USB Type-C |
| Manual | Yes |
| AC adapter included | Yes |
| Remote control included | Yes |
| Logistics data | |
| Master (outer) case net weight | 4.25 |
| Master (outer) case width | 300 |
| Master (outer) case length | 336 |
| Master (outer) case height | 194 |
| Master (outer) case gross weight | 5.43 |
| Master (outer) case volume | 19538.62 |
| Country of origin | Taiwan |
Specifications
| Brand | Aten |
