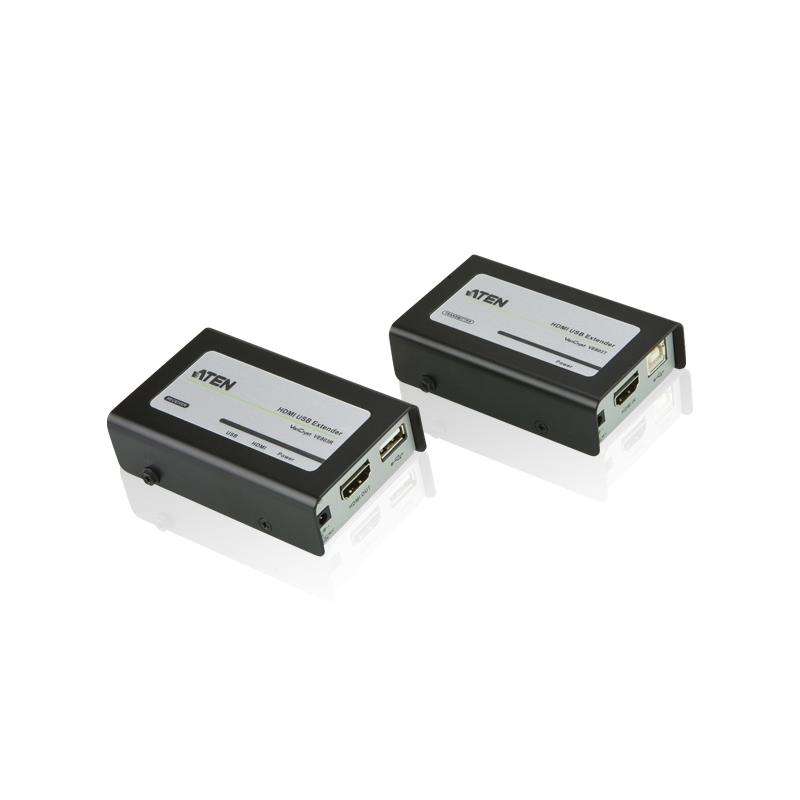

4710423779716 Aten VanCryst HDMI USB Extender (Over Cat5) - Up to 1080p@40m; 1080i@60m

4710423779716 Aten VanCryst HDMI USB Extender (Over Cat5) - Up to 1080p@40m; 1080i@60m

(0 review)

Product Code: 4710423779716

The VE803 HDMI USB Extender extends an HDMI signal up to 60 meters from the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 60 meters and 1080p signals up to 40meters. The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit. The VE803 is ideal for transportation centers, medical facilities, shopping malls or anywhere touch panel control or a kiosk is required. For flexibility and convenience, the VE803 local unit can be powered via the USB cable when connected to an appropriate source device. The VE803 is HDCP compliant, providing an easy and ideal HDMI extender solution for any application.

$ 239.00 $ 239.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN USB & HDMI Extender CAT5e/6, USB2.0 Full Speed (12Mbit/s) 1080P (40m) / 1080i (60m), 1920 x 1200 pixels, AV transmitter & receiver, 60 m, Wired, 3D, HDCP

ATEN USB & HDMI Extender CAT5e/6, USB2.0 Full Speed (12Mbit/s) 1080P (40m) / 1080i (60m). Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5e. Connectivity technology: Wired, USB connector type: USB Type-A, USB Type-B. Operating voltage (transmitter): 5 V, Operating voltage (receiver): 5 V, Power consumption (TX): 1.04 W. Weight: 495 g, Receiver dimensions (WxDxH): 90 x 57.4 x 24 mm, Receiver weight: 160 g. Package width: 59 mm, Package depth: 239 mm, Package height: 160 mm

Features
TypeAV transmitter & receiver
Maximum resolution1920 x 1200
Cable types supportedCat5e
Maximum transfer distance60
Extended display identification data (EDID)Yes
Electrostatic Discharge (ESD) protection15
Supported video modes1080i, 1080p
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Bandwidth225
HDCPYes
MaterialMetal
3DYes
Product colourBlack
Ports & interfaces
Connectivity technologyWired
HDMI in1
Number of HDMI outputs1
USB connector typeUSB Type-A, USB Type-B
DC-in jackYes
Power
Operating voltage (transmitter)5
Operating voltage (receiver)5
Power consumption (TX)1.04
Power consumption (RX)0.75
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Storage relative humidity (H-H)0 - 80
Weight & dimensions
Weight495
Receiver dimensions (WxDxH)90 x 57.4 x 24
Receiver weight160
Transmitter dimensions (WxDxH)90 x 57.4 x 24
Transmitter weight160
Packaging data
Package width59
Package depth239
Package height160
Package weight652
Packaging content
AC adapter includedYes
Cables includedUSB
ManualYes
Mounting kitYes
Logistics data
Master (outer) case width315
Master (outer) case length490
Master (outer) case height338
Master (outer) case gross weight13.5
Master (outer) case net weight9.9
Products per master (outer) case20

Specifications

Brand Aten
