4710423777019 Aten Desktop KVM Switch 4 Port Single Display VGA, 4x Custom KVM Cables Included, Selection Via Front Panel, Auto Scan Mode,

4710423777019 Aten Desktop KVM Switch 4 Port Single Display VGA, 4x Custom KVM Cables Included, Selection Via Front Panel, Auto Scan Mode,

(0 review)

Product Code: 4710423777019

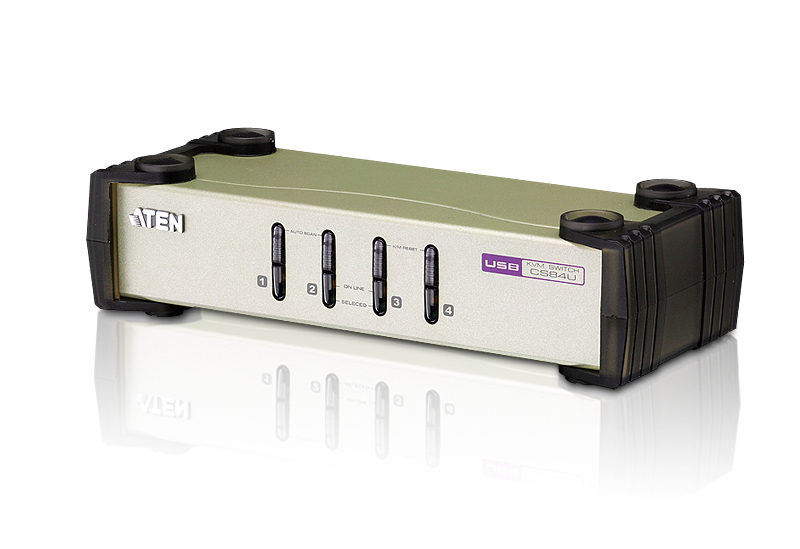

Aten Desktop KVM Switch 4 Port Single Display VGA, 4x Custom KVM Cables Included, Selection Via Front Panel, Auto Scan Mode,
The CS84U PS/2-USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS84U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.
Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS84U intercepts keyboard input directly, it will work on multiple computing platforms.
•One PS/2-USB VGA console controls four VGA interface computers.
•Dual Interface - supports computers with PS/2 or USB keyboards and mice
•Computer selection via front panel pushbuttons, hotkeys, and mouse
•Multiplatform support - Windows, Linux, Mac, and Sun
•Superior video quality - 2048 x 1536; DDC2B
•Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
•Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
•Complete keyboard emulation for error-free booting
•Mac/Sun keyboard support and emulation*
•Multilingual keyboard mapping - supports English, Japanese, and French keyboards
•Gaming keyboard support
•Auto Scan Mode for monitoring all computers
•Firmware upgradable
•Bus-Powered
* 1. PC keyboard combinations emulate Mac/Sun keyboards
2. Mac/Sun keyboard work only with their own computers




$ 149.00 $ 149.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 4-Port USB - PS/2 VGA KVM Switch (KVM Cables included), 2048 x 1536 pixels, QXGA, 0.45 W, Black, Grey

ATEN 4-Port USB - PS/2 VGA KVM Switch (KVM Cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Video bandwidth: 60 Hz. Product colour: Black, Grey, Housing material: Metal. Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.45 W. Width: 210 mm, Depth: 88 mm, Height: 55.5 mm

Ports & interfaces
Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeVGA
VGA (D-Sub) ports quantity4
Console portsUSB A, VGA (D-Sub)
USB 2.0 Type-A hub ports quantity2
USB connector typeUSB Type-A
DC-in jackYes
Performance
HD typeQXGA
Maximum resolution2048 x 1536
Video bandwidth60
Scan interval3,5,10,20
DDC2B supportYes
Design
Rack mountingNo
Product colourBlack, Grey
Housing materialMetal
LED indicatorsYes
Push buttonYes
Hot keysYes
Display
Built-in displayNo
Power
Power sourceDC
Input voltage5
Power consumption (typical)0.45
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Storage relative humidity (H-H)0 - 80
Weight & dimensions
Width210
Depth88
Height55.5
Weight1.51
Packaging data
Package width100
Package depth283
Package height173
Package weight1.69
Packaging content
Quick installation guideYes
ManualYes
Logistics data
Master (outer) case net weight7.57
Harmonized System (HS) code85176200
Master (outer) case width292
Master (outer) case length517
Master (outer) case height194
Master (outer) case gross weight8.98
Products per master (outer) case5

Specifications

Brand Aten
