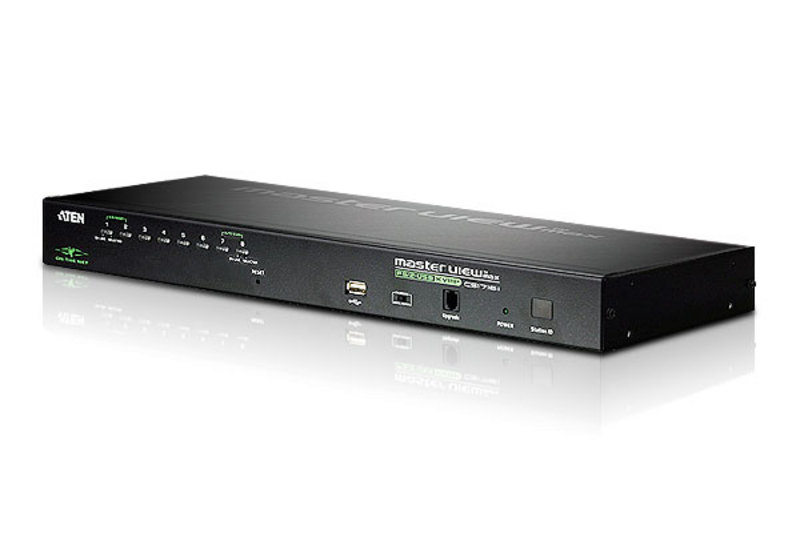

4710423776715 Aten 8 Port Rackmount USB-PS/2 VGA KVMP Over IP Switch with USB 2.0 Hub and Daisy Chain

(0 review)

Product Code: 4710423776715

Aten CS-1708IP – 8-Port PS/2-USB KVM over IP Switch With 1 Local/Remote User Access
The CS1708i KVM switches is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers. Remote users access the switches over the Internet by means of a web browser using TCP/IP for its remote communications protocol.
The CS1708i supports up to 32 concurrent user logins for single-bus computer access. A built-in feature that resembles an Internet chat program - the Message Board - lets them communicate with each other. The ability to exchange information in real time allows them to cooperatively manage the installation in a smooth and efficient manner.
Among the CS1708i other outstanding features, a Panel Array Mode provides the ability to simultaneously monitor up to 8 servers per switch; while the Mouse DynaSync™ feature automatically synchronizes the local and remote mouse pointer movements for perfect alignment regardless of what the mouse acceleration settings on the server are.
The CS1708i supports the highest security protocols, such as 128 bit SSL encryption for the browser, and RC4 128 bit encryption for secure keyboard, mouse, and video data transmission. For easier and more efficient user management integration, the CS1708i also supports authentication and authorization via remote servers, such as RADIUS, LDAP, LDAPS, and MS Active Directory.
These powerful features not only help administrators manage their server room in an efficient and flexible manner, they provide a cost effective management solution for the SMB sector.

1,099.00 1,099.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 8-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port, 2048 x 1536 pixels, Ethernet LAN, QXGA, Rack mounting, 9.5 W, 1U

ATEN 8-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. Security algorithms: 128-bit RC4, RSA, SSL/TLS. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Scan interval: 1,255 s. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 9.5 W

Ports & interfaces
Number of computers controlled128
Keyboard port typeUSB, PS/2
Mouse port typeUSB, PS/2
Video port typeVGA
Console portsVGA (D-Sub)
Console USB ports quantity1
USB connector typeUSB Type-A
DC-in jackYes
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Security algorithms128-bit RC4, RSA, SSL/TLS
Performance
HD typeQXGA
Maximum resolution2048 x 1536
Scan interval1,255
DDC2B supportYes
Hot-Plug supportYes
Daisy chainYes
Number of users32
Firmware upgradeableYes
Design
Rack mountingYes
Rack capacity1U
Product colourBlack
Housing materialMetal
LED indicatorsYes
Push buttonYes
Hot keysYes
Display
Built-in displayNo
On Screen Display (OSD)Yes
Power
Power sourceDC
Input voltage5.3
Power consumption (typical)9.5
System requirements
Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes
Sustainability
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Width437.2
Depth159.6
Height44
Weight3.42
Packaging data
Package width116
Package depth540
Package height233
Package weight3.83
Packaging content
Cables includedDC, KVM
Quick installation guideYes
ManualYes
Software includedYes
Rack mount kitYes
Logistics data
Master (outer) case net weight10.3
Harmonized System (HS) code85176200
Master (outer) case width375
Master (outer) case length565
Master (outer) case height258
Master (outer) case gross weight12.1
Products per master (outer) case3

Specifications

Brand Aten
