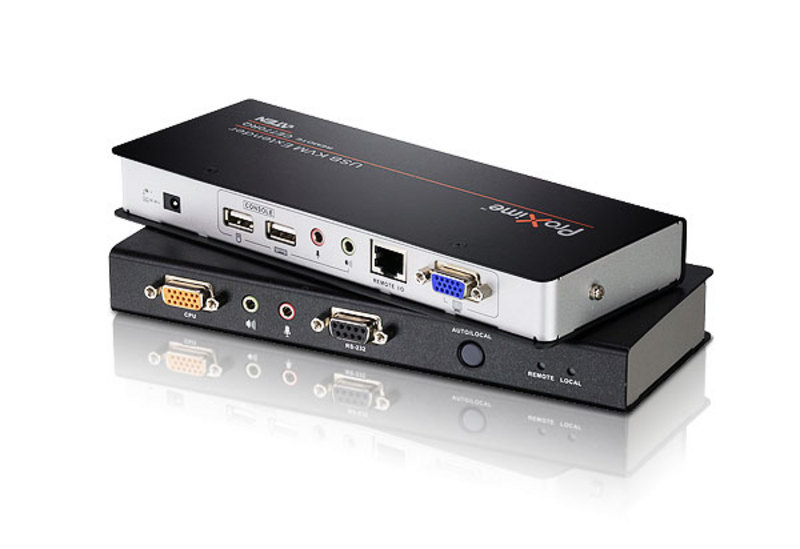

ATEN USB VGA KVM Extender with Audio, RS-232 and Deskew (300m), Transmitter & receiver, Wired, 300 m, Cat5, 1920 x 1200 pixels, 1920 x 1200, 1280 x 1024
ATEN USB VGA KVM Extender with Audio, RS-232 and Deskew (300m). Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 300 m. Transmitter video port type: VGA, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: VGA, Receiver local keyboard/mouse port type: USB. AC adapter output voltage: 5.3 V. Transmitter width: 20.2 cm, Transmitter depth: 8.64 cm, Transmitter height: 2.5 cm
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 300 |
| Cable types supported | Cat5 |
| Rack mounting | Yes |
| Maximum digital resolution | 1920 x 1200 |
| Supported resolutions | 1920 x 1200, 1280 x 1024 |
| Product colour | Black |
| Material | Aluminium, Metal |
| LED indicators | Link, Power |
| Transmitter | |
| Transmitter video port type | VGA |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | VGA |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Power | |
| AC adapter output voltage | 5.3 |
| Weight & dimensions | |
| Transmitter width | 20.2 |
| Transmitter depth | 8.64 |
| Transmitter height | 2.5 |
| Transmitter weight | 490 |
| Receiver width | 20.2 |
| Receiver depth | 8.64 |
| Receiver height | 2.5 |
| Receiver weight | 490 |
| Packaging data | |
| Package width | 98 |
| Package depth | 325 |
| Package height | 210 |
| Package weight | 1.85 |
| Packaging content | |
| Manual | Yes |
| Quick installation guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Storage relative humidity (H-H) | 0 - 80 |
| Technical details | |
| Weight | 1.8 |
| Logistics data | |
| Master (outer) case net weight | 9 |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 342 |
| Master (outer) case length | 512 |
| Master (outer) case height | 232 |
| Master (outer) case gross weight | 10.1 |
| Products per master (outer) case | 5 |
Specifications
| Brand | Aten |
