4710423773080 Aten Desktop KVMP Switch 2 Port Dual Display VGA w/ audio, 2x Custom KVM Cables Included, 2x USB Port, Selection Via Front Panel

4710423773080 Aten Desktop KVMP Switch 2 Port Dual Display VGA w/ audio, 2x Custom KVM Cables Included, 2x USB Port, Selection Via Front Panel

(0 review)

Product Code: 4710423773080

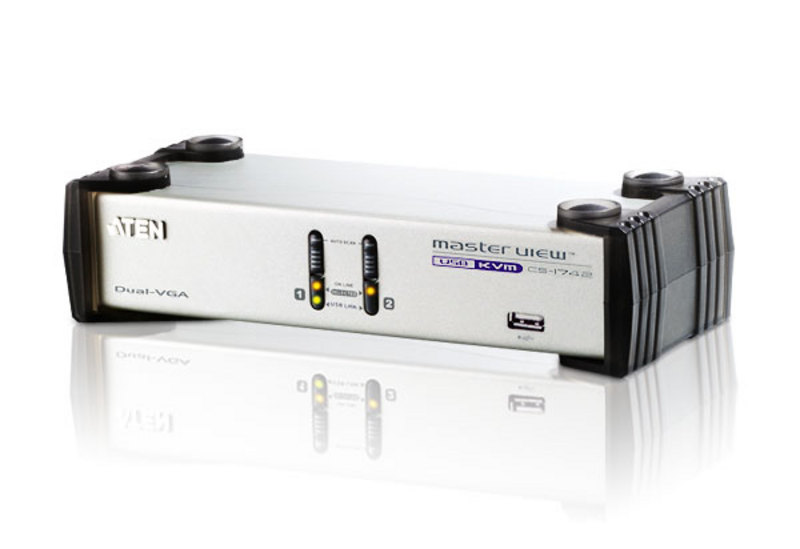

Aten Desktop KVMP Switch 2 Port Dual Display VGA w/ audio, 2x Custom KVM Cables Included, 2x USB Port, Selection Via Front Panel
CS1742 2 Port KVM Switch integrates functions of video signal dual output and USB KVM switches. It allows a computer with dual-screen support to pair with two VGA/SVGA/Multisync displays via a USB keyboard and mouse. Furthermore, CS1742 provides 2 USB ports, allowing each server to share any USB peripheral device that is connected to this HUB.
Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control two dual display computers
2 port USB Hub built in
Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
With speaker and microphone support
Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
Buzzer On/Off via hotkey
Keyboard and mouse emulation for error free booting
Computer selection via front panel pushbuttons and hotkeys
Superior video quality - up to 2048 x 1536; DDC2B
Firmware upgradeable
OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD
SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers.





$ 269.00 $ 269.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN CS1742, 2048 x 1536 pixels, 1.25 W, Silver

ATEN CS1742. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. Maximum resolution: 2048 x 1536 pixels, Scan interval: 1,99 s. Product colour: Silver, Housing material: Metal. Power source: DC, Input voltage: 5 V, Power consumption (typical): 1.25 W. Compliance certificates: RoHS

Ports & interfaces
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeVGA
VGA (D-Sub) ports quantity6
Console ports3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
Console USB ports quantity2
USB hubYes
USB 2.0 ports quantity4
USB connector typeUSB Type-A
USB version2.0
Audio connectionsYes
Headphone outputs1
Number of microphone inputs1
DC-in jackYes
Performance
Maximum resolution2048 x 1536
Scan interval1,99
DDC2B supportYes
Firmware upgradeableYes
Design
Rack mountingNo
Product colourSilver
Housing materialMetal
LED indicatorsYes
Push buttonYes
Hot keysYes
Display
Built-in displayNo
On Screen Display (OSD)No
Power
Power sourceDC
Input voltage5
Power consumption (typical)1.25
System requirements
Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes
Other operating systems supportedYes
Sustainability
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Width210
Depth88
Height55.5
Weight820
Packaging content
Cables includedKVM
ManualYes
Logistics data
Harmonized System (HS) code85176200

Specifications

Brand Aten
