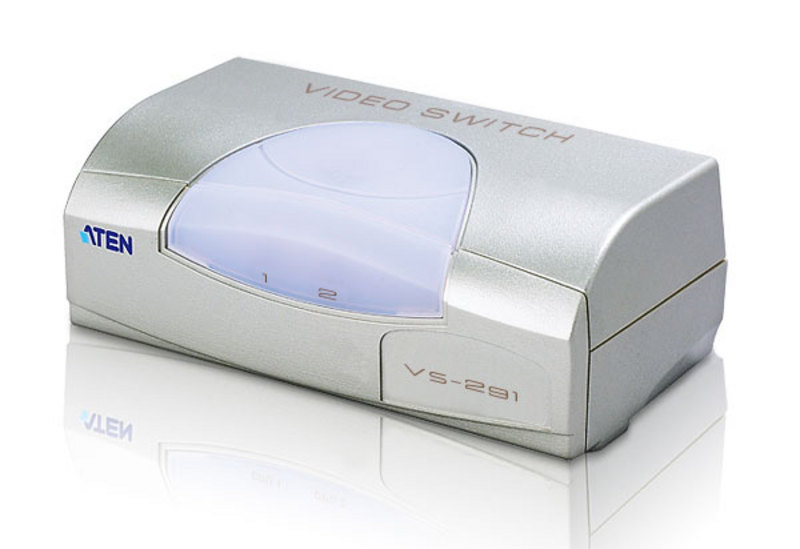

ATEN 2-Port VGA Video Switch, VGA, Metal, Plastic, Silver, 60 Hz, 10 m, 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1600 x 1200 (UXGA), 1920 x 1440
ATEN 2-Port VGA Video Switch. Video port type: VGA. Material: Metal, Plastic, Product colour: Silver, Maximum refresh rate: 60 Hz. Power consumption (typical): 0.82 W. Width: 65.2 mm, Depth: 120 mm, Height: 44 mm. Package width: 59 mm, Package depth: 239 mm, Package height: 160 mm
| Ports & interfaces | |
|---|---|
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 3 |
| VGA (D-Sub) input ports | 2 |
| VGA (D-Sub) output ports | 1 |
| DC-in jack | Yes |
| Features | |
| Material | Metal, Plastic |
| Product colour | Silver |
| Maximum refresh rate | 60 |
| Maximum operating distance | 10 |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1600 x 1200 (UXGA), 1920 x 1440 |
| LED indicators | Yes |
| Bandwidth | 150 |
| Maximum resolution | 1920 x 1440 |
| Input impedance | 75 |
| Output impedance | 75 |
| Power | |
| Power consumption (typical) | 0.82 |
| Weight & dimensions | |
| Width | 65.2 |
| Depth | 120 |
| Height | 44 |
| Weight | 220 |
| Packaging data | |
| Package width | 59 |
| Package depth | 239 |
| Package height | 160 |
| Package weight | 360 |
| Packaging content | |
| Quantity per pack | 1 |
| AC adapter included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Storage relative humidity (H-H) | 0 - 80 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 315 |
| Master (outer) case length | 490 |
| Master (outer) case height | 338 |
| Master (outer) case gross weight | 7.9 |
| Products per master (outer) case | 20 |
| Master (outer) case net weight | 4.4 |
Specifications
| Brand | Aten |
